Splitting a report into sections, by table object

library(rtfreporter)

A common clinical layout is one section per group – one section per lab test, per cohort, per visit – each starting on its own page with the group name in the running header. rtfreporter builds this with rtf_tables(..., auto_section = TRUE). This article shows, for each kind of table object, how to get the section names where auto_section can see them.

How `auto_section` decides where sections start

rtf_tables(auto_section = TRUE) reads the names of the list elements it is given:

a non-empty name starts a new section and is appended to the running header (the base header defined once by rtf_section() without a page);
an empty / unnamed element falls through into the current section.

So the whole question is: how do the per-page rtftables in the list get their names? as_rtftables() returns one element per page, so there are two natural answers depending on where the grouping variable lives.

Where the group lives	Object types	How to name the sections
A column of the rendered body	a `data.frame` / `Tplyr` body you assemble; `cards` + `tfrmt` with `label_loc = "column"`	`as_rtftables(split = "by_value", group_col = ...)` – names each page by the group value
Row groups (label rows in the stub)	`gt`, `gtsummary`, `rtables` / `tern`, `tfrmt` (indented)	build one table per group, then [`combine_sections()`]

Both routes end the same way – a flat, named list handed to rtf_tables(..., auto_section = TRUE).

The data

A small lab dataset: three lab tests, two visits, three treatment arms.

Show code

set.seed(1)
n      <- 24
arms   <- c("Placebo", "Low Dose", "High Dose")
tests  <- c("ALT (U/L)", "AST (U/L)", "Bilirubin (umol/L)")
visits <- c("Baseline", "Week 24")
centre <- c("ALT (U/L)" = 25, "AST (U/L)" = 22, "Bilirubin (umol/L)" = 10)

adlb <- do.call(rbind, lapply(tests, function(p) do.call(rbind, lapply(visits,
  function(v) data.frame(
    SUBJID  = seq_len(n),
    ARM     = factor(sample(arms, n, TRUE), levels = arms),
    PARAMCD = factor(p, levels = tests),
    AVISIT  = factor(v, levels = visits),
    AVAL    = round(rnorm(n, centre[p], 5), 1),
    stringsAsFactors = FALSE)))))

str(adlb, give.attr = FALSE)

#> 'data.frame':    144 obs. of  5 variables:
#>  $ SUBJID : int  1 2 3 4 5 6 7 8 9 10 ...
#>  $ ARM    : Factor w/ 3 levels "Placebo","Low Dose",..: 1 3 1 2 1 3 3 2 2 3 ...
#>  $ PARAMCD: Factor w/ 3 levels "ALT (U/L)","AST (U/L)",..: 1 1 1 1 1 1 1 1 1 1 ...
#>  $ AVISIT : Factor w/ 2 levels "Baseline","Week 24": 1 1 1 1 1 1 1 1 1 1 ...
#>  $ AVAL   : num  23.6 23.5 22.9 26.3 20.5 27.2 18.8 23.9 26.9 25.7 ...

We want one section per lab test.

Route A – the group is a column (`split = "by_value"`)

When you assemble the body yourself (a plain data.frame, or a Tplyr result), keep the grouping variable as a column. Here we summarise adlb to a display body whose first column, Test, is the section key:

Show code

cell <- function(p, v, a) {
  x <- adlb$AVAL[adlb$PARAMCD == p & adlb$AVISIT == v & adlb$ARM == a]
  sprintf("%.1f (%.1f)", mean(x), sd(x))
}
lab_body <- do.call(rbind, lapply(tests, function(p) {
  d <- data.frame(Test = p, Visit = visits, check.names = FALSE,
                  stringsAsFactors = FALSE)
  for (a in arms) d[[a]] <- vapply(visits, function(v) cell(p, v, a), character(1))
  d
}))
lab_body

#>                 Test    Visit    Placebo   Low Dose  High Dose
#> 1          ALT (U/L) Baseline 26.2 (3.7) 23.7 (2.9) 24.0 (3.5)
#> 2          ALT (U/L)  Week 24 25.8 (4.9) 25.3 (4.2) 26.8 (7.0)
#> 3          AST (U/L) Baseline 23.7 (5.1) 21.6 (4.6) 20.8 (4.9)
#> 4          AST (U/L)  Week 24 19.9 (4.3) 17.5 (3.2) 21.2 (7.8)
#> 5 Bilirubin (umol/L) Baseline  9.1 (4.0) 11.6 (5.0)  9.1 (4.0)
#> 6 Bilirubin (umol/L)  Week 24 10.7 (5.5)  5.0 (5.7)  9.0 (4.1)

as_rtftables(split = "by_value", group_col = "Test") makes one page per distinct Test and names each page with that value. drop_cols = "Test" hides the key column from the printed table while still using it to split and name – so the page names survive even though the column does not:

Show code

pages <- as_rtftables(lab_body,
                      split      = "by_value",
                      group_col  = "Test",
                      drop_cols  = "Test",
                      col_header = c("Visit", arms))
names(pages)              # one section name per lab test

#> [1] "ALT (U/L)"          "AST (U/L)"          "Bilirubin (umol/L)"

That named list is already auto_section-ready:

Show code

hdr <- rtf_header(rows = list(
  c(l = "Acme Biopharma, Inc.", r = "Page {AUTO_PAGE} of {AUTO_TOTAL_PAGES}"),
  c(c = "Table 14.3  Laboratory Results -- Mean (SD) by Visit"),
  c(c = "Safety Population"),
  c(c = "")))

doc <- rtf_document(page = list(paper_size = "letter", orientation = "landscape")) |>
  rtf_section(header = hdr) |>     # base header (no `page`)
  rtf_tables(pages, auto_section = TRUE)           # one section per lab test

generate_rtfreport(doc, "lab_by_test.rtf", overwrite = TRUE)

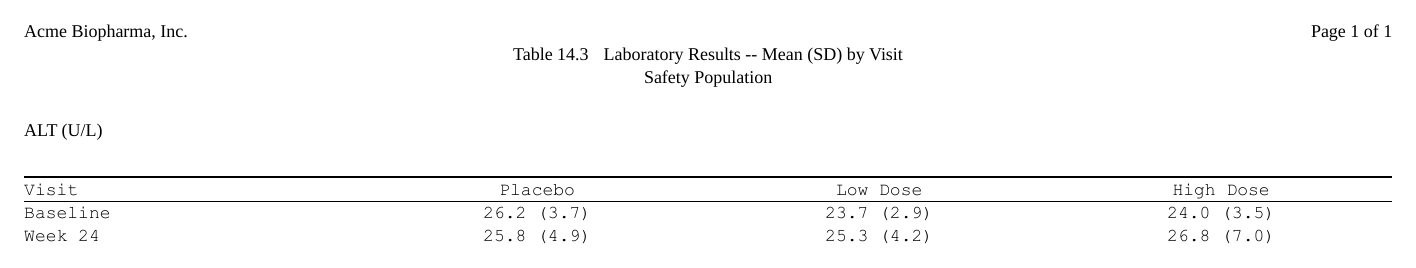

Each lab test now opens its own section with the test name appended to the shared header. Tplyr fits the same route: Tplyr::build() returns a data frame, so add the Test column and call as_rtftables(split = "by_value") exactly as above.

Route B – row-grouped frameworks (`combine_sections()`)

gt, gtsummary and rtables / tern render a grouping variable as indented label rows in the stub, not as a column. After rendering there is no column for split = "by_value" to key on. The natural unit there is one table per section: build a small table for each lab test, then stitch them together with [combine_sections()], which names each table’s first page and lets the rest fall through.

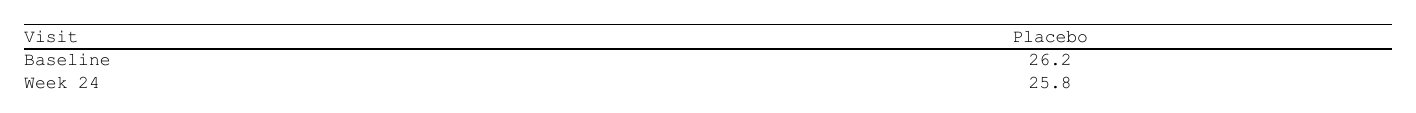

combine_sections() is format-agnostic – it only arranges the names of a list of rtftables, so the same call works whatever built them:

Show code

# (stand-in page lists; in practice each comes from as_rtftables() below)
alt <- as_rtftables(data.frame(Visit = visits, Placebo = c("26.2", "25.8")))
ast <- as_rtftables(data.frame(Visit = visits, Placebo = c("23.7", "19.9")))

sections <- combine_sections(`ALT (U/L)` = alt, `AST (U/L)` = ast)
names(sections)          # first page named, the rest blank (fall-through)

#> [1] "ALT (U/L)" "AST (U/L)"

gtsummary

Build one tbl_* per test, convert each with as_rtftables(), and combine. setNames() + do.call() keep it to a single loop:

Show code

library(gtsummary)

one_test <- function(p) {
  adlb[adlb$PARAMCD == p, c("ARM", "AVISIT", "AVAL")] |>
    tbl_continuous(variable = AVAL, by = ARM, include = AVISIT,
                   statistic = ~ "{mean} ({sd})") |>
    as_rtftables(read_meta = TRUE)
}

sections <- do.call(combine_sections, setNames(lapply(tests, one_test), tests))

doc <- rtf_document(page = list(paper_size = "letter", orientation = "landscape")) |>
  rtf_section(header = hdr) |>
  rtf_tables(sections, auto_section = TRUE)
generate_rtfreport(doc, "lab_gtsummary.rtf", overwrite = TRUE)

rtables / tern

Same shape – one build_table() per test, then combine:

Show code

library(rtables)

one_test <- function(p) {
  basic_table(show_colcounts = TRUE) |>
    split_cols_by("ARM") |>
    split_rows_by("AVISIT") |>
    analyze("AVAL", afun = function(x)
      rcell(c(mean(x), sd(x)), format = "xx.x (xx.x)")) |>
    build_table(df = adlb[adlb$PARAMCD == p, ]) |>
    as_rtftables(read_meta = TRUE)
}

sections <- do.call(combine_sections, setNames(lapply(tests, one_test), tests))

One table, or one per section? If instead you split_rows_by("PARAMCD") in a single rtables table, all three tests render as row groups inside one table – i.e. one section, with the tests as indented headings. That is a perfectly good layout; use it when you want the tests together. Build per-test tables and combine_sections() only when each test should be its own section.

Choosing a route

Object	Route
data.frame / Tplyr	A – split = “by_value”
cards + tfrmt (label_loc = “column”)	A – split = “by_value”
gt / gtsummary	B – combine_sections()
rtables / tern	B – combine_sections()
tfrmt (indented)	B – combine_sections()

A note on the “one section per page” default

You do not have to use either route. If you hand auto_section = TRUE a list whose pages are each named (or each unnamed), you simply get one RTF section per page. That is harmless – it matches the one-page-one-section convention many SAS-based pipelines use – and the page numbering and headers still come out correct. split = "by_value" and combine_sections() are for the tidier one-section-per-group layout, not a correctness fix.

See also Headers and footers for the section / header model, Paginating with as_rtftables() for the split strategies, and Importing tables for reading each framework’s object.

Where next

Multi-stub section splits — one section per group, with an indented stub

The four recipes (?rtfreporter-recipes) are the same ground covered as runnable help-page examples: demographics, adverse events, PK and laboratory, each data-in to RTF-out.
