Page and document setup

library(rtfreporter)

Every report starts with rtf_document(), which carries the document-wide settings: page geometry, fonts, colours, and the default font size. The defaults are tuned for clinical TFL output, so you can usually call it with no arguments – but each piece is configurable. This article walks through what you can set at the document level and how it cascades to the tables.

Show code

df <- data.frame(
  Parameter = c("Age (years)", "  Mean", "  SD"),
  Value     = c("", "75.1", "8.2"),
  stringsAsFactors = FALSE
)

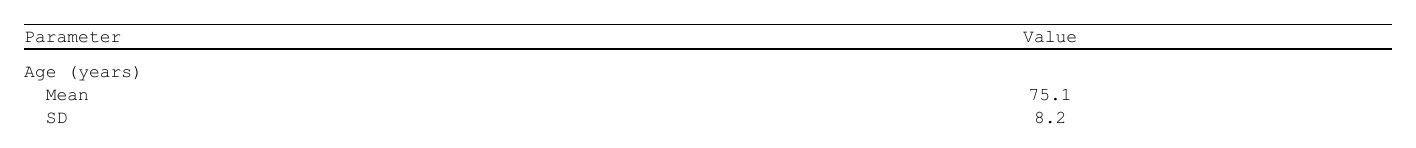

# All defaults -- landscape Letter, 9pt Courier
doc <- rtf_document() |>
  rtf_tables(as_rtftables(df))

Setting the document config: `rtf_document()` (and `rtf_config()`)

A document has exactly one document-level configuration, and you can set all of it on rtf_document(). The two calls below are equivalent:

rtf_document(default_format = list(font_size_half_points = 20L))

rtf_document() |>
  rtf_config(default_format = list(font_size_half_points = 20L))

For a brand-new document rtf_config() is not required – you can pass the same settings straight to rtf_document(). Where it earns its keep is after you have composed the report: build the content and sections once, then derive output variants by changing only a document-level setting. Because an rtf_document is immutable, each variant is an independent copy that shares the same content.

Show code

# Compose the report once (content + section).
base <- rtf_document() |>
  rtf_tables(as_rtftables(df)) |>
  rtf_section(page = 1, header = NULL, footer = NULL)

# Then render the SAME report in two paper sizes by changing only `page`.
letter <- base                                                  # landscape Letter
a4      <- base |> rtf_config(page = list(paper_size = "A4"))   # landscape A4

# generate_rtfreport(letter, "report-letter.rtf", overwrite = TRUE)
# generate_rtfreport(a4,     "report-a4.rtf",     overwrite = TRUE)

page and default_format are merged per key, so the A4 variant above keeps base’s orientation and margins and only swaps the paper size. The same trick produces a large-print copy (rtf_config(default_format = list(font_size_half_points = 24L))) or a client-specific font (rtf_config(font_table = list(list(name = "Arial")))) from one composed report.

Both functions take the same four parameters: page, font_table, color_table, and default_format, covered below.

Page geometry – `page`

Pass page = list(...). Dimensions and margins are given in inches; any key you omit falls back to its default.

Key	Meaning	Default
`paper_size`	Named preset: `"letter"`, `"legal"`, `"A4"`, `"A3"`, `"A5"` (case-insensitive)	`"letter"`
`orientation`	`"landscape"` or `"portrait"`	`"landscape"`
`width_in`	Paper width (inches) – explicit override	from `paper_size`
`height_in`	Paper height (inches) – explicit override	from `paper_size`
`margin_top_in`	Top margin	`0.75`
`margin_bottom_in`	Bottom margin	`0.75`
`margin_left_in`	Left margin	`0.75`
`margin_right_in`	Right margin	`0.75`
`header_dist_in`	Header band distance from page edge	`margin_top_in`
`footer_dist_in`	Footer band distance from page edge	`margin_bottom_in`

The default margins follow the FDA eCTD Portable Document Format (PDF) Specifications minimums (left/binding ≥ 0.75”, other sides ≥ 0.375”, landscape top ≥ 0.75”): a uniform 0.75” on all four sides (the bottom leaves room for an overall page-number footer).

The header/footer band distances (\headery / \footery in the RTF) default to the full top / bottom margin, so the band sits at the margin boundary. Set header_dist_in / footer_dist_in to pin them explicitly.

Changing the margins

Pass any of the four margin_*_in keys to rtf_document(page = ) (or rtf_page()) to override a margin for one document; an omitted key keeps its default. A wide table (many treatment arms, toxicity-grade shift tables) often does not fit inside the 0.75” left/right default. Narrowing the left/right margins to eCTD’s 0.5” buys an extra inch of horizontal room – they still clear the 0.375” floor:

# Landscape Letter, left/right narrowed to 0.5" for a wide TFL.
# Writable width = 11 - 2*0.5 = 10 in = 14400 twips (vs 9.5 in / 13680 at 0.75").
rtf_document(page = list(margin_left_in = 0.5, margin_right_in = 0.5))

To apply the same margins to every report in a session or site (e.g. in Rprofile.site), set the matching options instead of repeating them per document:

options(rtfreporter.page.margin_left_in  = 0.5,
        rtfreporter.page.margin_right_in = 0.5)

auto_width (and as_rtftables()) size columns to the default writable width, so they follow the current margins automatically; only absolute column_widths_twips need to be recomputed when you change the margins.

Pick a paper size by name. For the common case, paper_size + orientation is easier than remembering inch dimensions. One line gives A4 landscape:

rtf_document(page = list(paper_size = "A4"))                          # A4 landscape
rtf_document(page = list(paper_size = "A4", orientation = "portrait")) # A4 portrait

Explicit dimensions win and are used as given. If you pass width_in / height_in, those exact dimensions are used and the orientation is inferred from them (width_in >= height_in means landscape). An orientation that contradicts the dimensions emits a warning and the dimensions are kept (not swapped); a paper_size given alongside explicit dimensions is ignored (with a warning). So this is A4 portrait (taller than wide), and the orientation = "landscape" is a contradiction that warns:

rtf_document(page = list(width_in = 8.27, height_in = 11.69))   # inferred portrait
rtf_document(page = list(orientation = "landscape",
                         width_in = 8.27, height_in = 11.69))   # warns; stays portrait

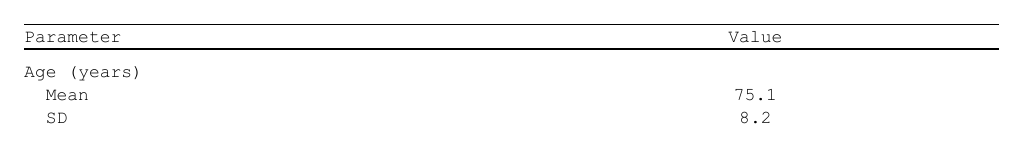

The default is landscape US Letter (11 × 8.5 in), the usual clinical TFL page. For a portrait A4 page with wider margins:

Show code

doc <- rtf_document(
  page = list(
    orientation    = "portrait",
    width_in       = 8.27, height_in = 11.69,   # A4
    margin_left_in = 0.75, margin_right_in = 0.75,
    margin_top_in  = 1.0,  margin_bottom_in = 1.0
  )
) |>
  rtf_tables(as_rtftables(df))

The writable width (paper width minus the left/right margins) is what tables are sized against, so changing the margins automatically reflows full-width tables.

Fonts – `font_table`

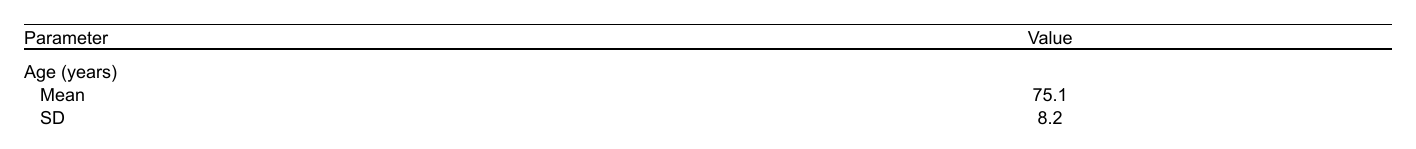

The report uses a single font, given by font_table. The default is Courier, a monospaced font: in clinical listings, monospacing is what lets count/percent columns line up by character (see the count/percent formatters in the pagination article). Switch to a proportional font only if you do not rely on character alignment:

doc <- rtf_document(font_table = list(list(name = "Arial"))) |>
  rtf_tables(as_rtftables(df))

font_table is written as a list for forward compatibility, but only the first entry is currently used – any further entries are ignored, and there is no way to select a different font for specific cells or text. (Multiple fonts and per-text font selection are a planned enhancement.) To use one font throughout, set that first entry as above.

Document font size – `default_format`

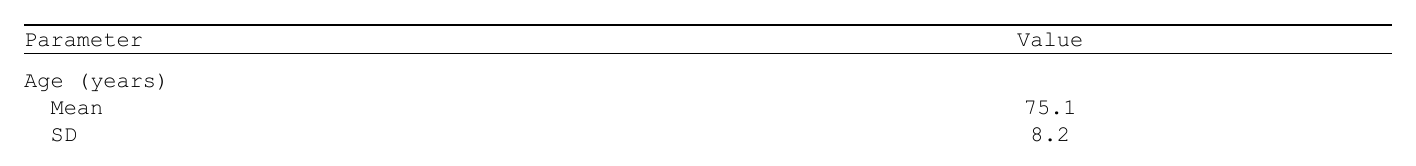

The document font size lives in default_format and is expressed in half-points (the unit of the RTF \fs command): 18 = 9 pt, 20 = 10 pt, 24 = 12 pt, and so on. 9 pt is the package default.

doc <- rtf_document(default_format = list(font_size_half_points = 22L)) |>  # 11pt
  rtf_tables(as_rtftables(df))

The font size also drives the default row height: taller text needs taller rows, so rtfreporter picks a sensible default row height for the chosen size.

# Internal lookup, shown here to illustrate the cascade:
rtfreporter:::.default_row_height_twips(18L)   # 9pt  -> 230 twips
#> [1] 230
rtfreporter:::.default_row_height_twips(22L)   # 11pt -> 270 twips
#> [1] 270

Default cell / row height

All table-shaped elements – page header/footer rows, column-header rows, data rows, blank separator rows, and footnotes – share a font-size-aware default row height (in twips; 1 twip = 1/1440 inch = 1/20 point). These defaults live in inst/resources/rtfreporter_defaults.R (admin-tunable, package-wide):

Font size	Default row height
8 pt (`16`)	210 twips
9 pt (`18`)	230 twips (default)
10 pt (`20`)	250 twips
11 pt (`22`)	270 twips
12 pt (`24`)	290 twips

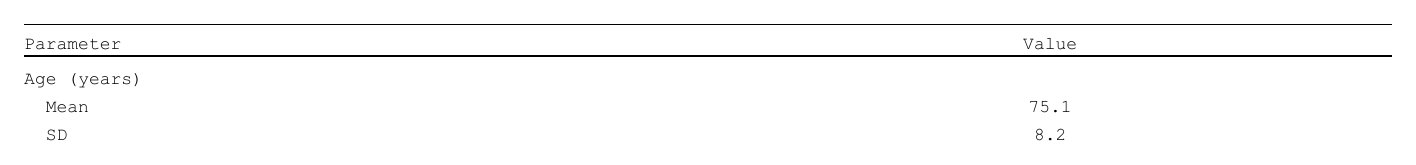

You rarely need to touch these. To change heights for a specific table, override them per table on rtftable() / as_rtftables():

Show code

doc <- rtf_document() |>
  rtf_tables(as_rtftables(
    df,
    row_height_twips        = 280L,   # data rows
    header_row_height_twips = 300L,   # column-header rows
    blank_row_height_twips  = 140L    # blank separator rows (e.g. half height)
  ))

Cell padding (the gap between the cell border and its text) defaults to 0 (text sits flush against the border, the typical clinical look) and is likewise configurable per table via cell_padding_left_twips / cell_padding_right_twips.

Document-wide row height / padding

To change the row height or cell padding for the whole report – without editing the resource file – set it on the document via default_format (or globally as an option). It applies to every table-shaped element (content table, page header/footer, title/footnote), and a per-module value still overrides it:

Show code

doc <- rtf_document(default_format = list(
  row_height_twips         = 280L,
  cell_padding_left_twips  = 72L,
  cell_padding_right_twips = 72L
))

# ...or set the house style site-wide (e.g. in Rprofile.site):
# options(rtfreporter.row_height_twips = 280L,
#         rtfreporter.cell_padding_left_twips = 72L)

Resolution is highest-wins: per-module (rtftable() / rtf_header() / rtf_footer() / rtf_table_style()) > document default_format > rtfreporter.* option > the font-aware / resource baseline.

Site-wide defaults

The document-level defaults above (paper size, orientation, margins, font, font size) are read from rtfreporter.* options, resolved as: an explicit argument you pass wins, otherwise the option value, otherwise the built-in factory baseline. So a site or organisation can set its house style once – for example in Rprofile.site – and every report inherits it without changing any script:

Show code

options(
  rtfreporter.font              = "Arial",
  rtfreporter.page.paper_size   = "A4",
  rtfreporter.page.margin_top_in = 1.0
)

Inspect the values a report will use, and restore the factory baseline, with:

rtfreporter_options()        # snapshot of the resolved defaults (audit trail)
rtfreporter_reset_defaults() # discard any overrides, back to the factory values

Reproducibility note. Because options can change the output of identical code, a validated or reproducible run should pin the configuration in the script (pass the settings explicitly, or call rtfreporter_reset_defaults() first) rather than relying on the environment, and can record rtfreporter_options() alongside the output as an audit trail.

Colours

Colours are given as "#RRGGBB" hex strings, and rtfreporter collects every colour you reference and builds the RTF colour table automatically – you never maintain a palette. Two things can be coloured, which together cover the usual clinical TFL needs.

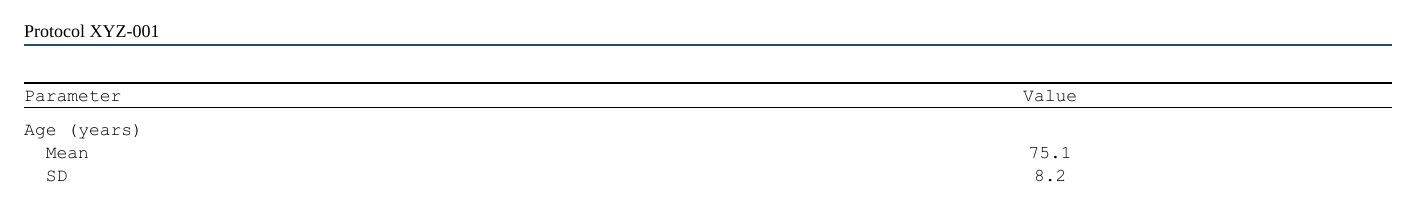

Borders – rtf_border_line(color = ...), anywhere a border is accepted (column-header rules, the body / first-row / last-row zones, spanning headers, and the page header/footer band border). For example, a navy rule under a header:

Show code

navy_rule <- rtf_border(bottom = rtf_border_line(color = "#1F4E79"))

doc <- rtf_document() |>
  rtf_section(page = 1,
    header = rtf_header(rows = list(c(l = "Protocol XYZ-001")), border = navy_rule),
    footer = NULL) |>
  rtf_tables(as_rtftables(df))

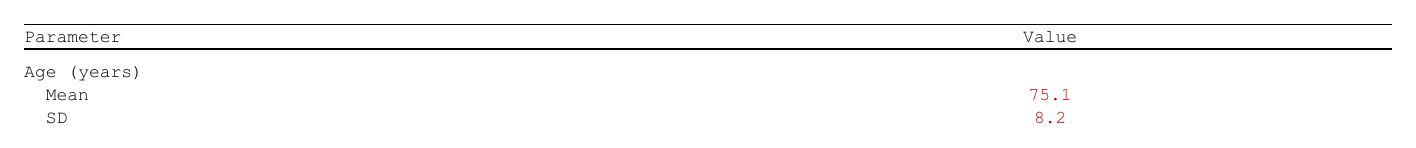

Body (data-cell) text – per column via col_spec’s color, or per cell via cell_styles’s color (which overrides the column colour). Useful, for example, to flag an out-of-range value in red:

Show code

doc <- rtf_document() |>
  rtf_tables(as_rtftables(
    df,
    col_spec = list(list(col = 2, color = "#C00000"))   # column 2 text in red
  ))

What is not coloured (by design, for now): cell background / fill, and the text of column headers, the page header/footer, titles, and footnotes – these render in the default black. The color_table argument on rtf_document() only pre-declares colours in the table; it does not style anything by itself.

A complete example

Putting it together – a portrait A4 page, Arial at 11 pt, custom margins, and a navy header rule:

Show code

navy_rule <- rtf_border(bottom = rtf_border_line(color = "#1F4E79"))

doc <- rtf_document(
  page = list(
    orientation    = "portrait",
    width_in       = 8.27, height_in = 11.69,
    margin_left_in = 0.75, margin_right_in = 0.75,
    margin_top_in  = 1.0,  margin_bottom_in = 1.0
  ),
  font_table     = list(list(name = "Arial")),
  default_format = list(font_size_half_points = 22L)
) |>
  rtf_section(page = 1,
    header = rtf_header(rows = list(c(l = "Protocol XYZ-001", r = "Confidential")),
                        border = navy_rule),
    footer = rtf_footer(c(c = "Page {AUTO_PAGE} of {AUTO_TOTAL_PAGES}"))) |>
  rtf_tables(as_rtftables(df, row_height_twips = 280L))

generate_rtfreport(doc, "report.rtf", overwrite = TRUE)

See ?rtf_document and ?rtf_config for the full argument reference.

Where next

Headers and footers — what sits in the margins you just set

The four recipes (?rtfreporter-recipes) are the same ground covered as runnable help-page examples: demographics, adverse events, PK and laboratory, each data-in to RTF-out.
