From as_rtftables() to a plan

If you already write as_rtftables() calls, you already know most of the plan. The display half of a plan does not add new settings: each verb passes its arguments on to as_rtftables(), rtftable(), stub_cols(), set_col_header() or paginate_cols(), under the same names. This article lists where each as_rtftables() argument went, and shows how to see the call a plan makes.

library(rtfreporter)

A plan on a table you already have

A plan does not have to start from an ARD. Given a data frame that is already the table, table_plan() keeps it as it is and the plan uses only its display half. This is a small laboratory summary in the usual shape: a parameter, a statistic label, and one column per arm.

Show code

lab <- data.frame(
  PARAM   = rep(c("ALT (U/L)", "AST (U/L)", "Creatinine (umol/L)"), each = 4),
  STAT    = rep(c("n", "Mean (SD)", "Median", "Min, Max"), 3),
  Placebo = c("86", "17.6 (8.21)", "15.0", "6, 59",
              "86", "22.4 (6.12)", "21.0", "11, 50",
              "86", "95.3 (18.9)", "93.0", "58, 159"),
  Active  = c("168", "18.4 (9.03)", "16.0", "5, 71",
              "168", "23.1 (7.40)", "22.0", "10, 66",
              "168", "96.1 (20.2)", "94.0", "53, 177"))

The same pages, written both ways:

Show code

by_hand <- as_rtftables(
  lab,
  group_by = "value", collapse_repeats = TRUE,
  blank_rows = "between_groups", blank_row_end = TRUE,
  max_rows = 10, split = "group_safe",
  border = "tfl", read_meta = FALSE)

as_plan <- table_plan(lab) |>
  plan_row_group(mode = "value", collapse = TRUE) |>
  plan_blanks(where = "between_groups", last = TRUE) |>
  plan_paginate_rows(max_rows = 10, split = "group_safe") |>
  plan_style(border = "tfl") |>
  plan_apply()

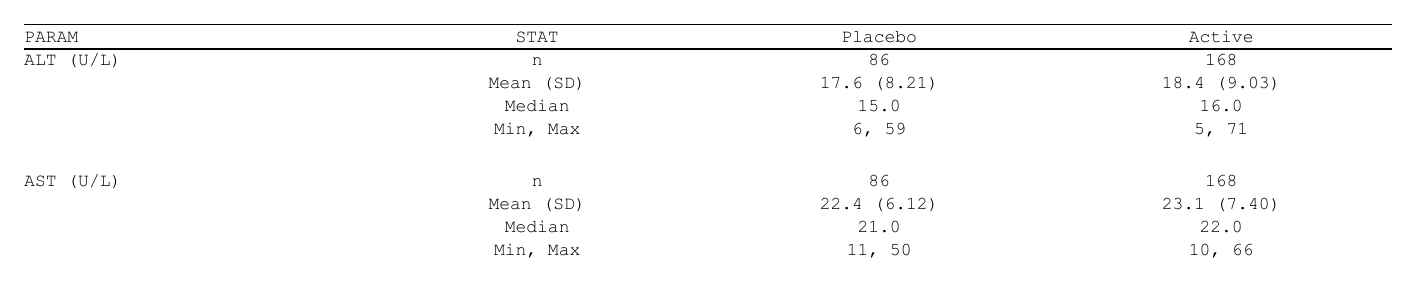

Both give the same pages:

all.equal(by_hand, as_plan)
#> [1] TRUE

Neither names the group column. With group_by = "value", a run of equal values in the first column is a group. A plan built from an ARD names it for you: it is the outermost row key of table_plan(rows = ).

The call a plan makes

plan_apply(plan, stage = "args") gives the arguments the plan resolves to, without running anything. $rtf is the as_rtftables() call:

Show code

p <- table_plan(lab) |>
  plan_row_group(mode = "value", collapse = TRUE) |>
  plan_blanks(where = "between_groups", last = TRUE) |>
  plan_paginate_rows(max_rows = 10, split = "group_safe") |>
  plan_style(border = "tfl")
str(plan_apply(p, "args")$rtf)

#> List of 8
#>  $ group_by        : chr "value"
#>  $ collapse_repeats: logi TRUE
#>  $ blank_rows      : chr "between_groups"
#>  $ blank_row_end   : logi TRUE
#>  $ max_rows        : num 10
#>  $ split           : chr "group_safe"
#>  $ border          : chr "tfl"
#>  $ read_meta       : logi FALSE

This is the quickest way to find which line of a long plan decided a setting. Every layer has been merged, so what you see is what runs.

Where each argument went

Pages

as_rtftables()	Plan
max_rows, split, split_rows, min_group_rows, cont_label	plan_paginate_rows(max_rows, split, break_before, min_group_rows, cont_label) (split_rows is break_before)
split = "by_value", group_col	plan_paginate_group(col): a page per value
page_by	no verb; use plan_paginate_group() for a page per value
then paginate_cols(pages, ...)	plan_paginate_cols(at, cut_by, every, keep, col_header, fit, allow_span_break, order)

Rows

as_rtftables()	Plan
group_by, collapse_repeats	plan_row_group(mode, collapse)
group_col	the outermost row key of table_plan(rows = ); plan_paginate_group(col = ) for a page split
sort_by, sort_desc	plan_sort("KEY", "-OTHER"): a minus sign for descending
blank_rows, blank_row_first, blank_row_end, count_blank_rows	plan_blanks(where, first, last, counted)
drop_cols	plan_hide(...); also keep = FALSE on plan_sort() / plan_paginate_group()
stub (and the deprecated stub_vars, stub_label, stub_indent, stub_group_summary)	plan_stub(vars, name, indent, group_summary)
listing	plan_listing(listing_col(...), ...)

Columns and header

as_rtftables() / other	Plan
auto_width	plan_columns(auto_width = )
rtftable(col_rel_width = ), row_title	plan_columns(widths = , row_title = ); named widths follow the columns
set_decimal_split(pages, cols = )	plan_columns(decimal = )
set_col_header(pages, header, values = )	plan_col_header(header, values)
header_sep	the separator of several cols keys: plan_columns(sep = )

Look

as_rtftables() / other	Plan
border, align_count_pct, and rtftable()’s font, font_size_half_points, row_height_twips, cell_valign, markup, …	plan_style(), same names
style = rtf_table_style(header = , body = , ...)	plan_style(border_header = , border_body = , ...)
style_header(), style_cols()	plan_cell_style(header = TRUE, ...), plan_cell_style(cols = , ...)
style_zone()	plan_style(border_* = )
rtftable(cell_styles = ), style_body() by condition	plan_cell_style(where = ~ ..., ...), or a formula value
as_rtftables(align_count_pct = TRUE)	plan_style(align_count_pct = TRUE)
fmt_numeric() on the data	plan_digits(<column> = 2), plan_digits(.rows = c(Mean = 1))

Handled for you

as_rtftables()	In a plan
read_meta	FALSE: a table from an ARD is a plain data frame with no adapter metadata
na, cell_format	the cells are text already: plan_cells(na = ) for an empty cell

Rules that differ from a single call

A few things behave differently because a plan is built from layers:

• A later layer wins for every setting except one. plan_hide() adds: two plan_hide() calls hide both columns, because a later one un-hiding the first would be a surprise.
• Contradictions are errors. plan_paginate_group() with plan_paginate_rows(max_rows = ) says both “a page per value” and “this many rows a page”. A single call would quietly ignore max_rows. A plan stops and says which to drop.
• Declarations name columns, not positions. plan_columns(widths = c(row_label = 4, .values = 2)) and plan_cell_style(cols = "Placebo") still apply after a column is added or reordered. .values stands for every value column.

When to stay with as_rtftables()

Both routes produce the same pages, so choose by what fits the program:

• A table from gt, rtables, flextable and the like: as_rtftables() reads the object’s own header, spans and styles. A plan starts from a data frame.
• A table from an ARD: a plan. It fills the cells, reads the header populations from the ARD, and keeps a program short.
• A study with many tables in one house style: a plan. The style is a set of layers written once, and each table adds its own. tflspec can also save a plan to a workbook and build it again from there.

See Tables from an ARD and The plan verbs.
