Importing tables with as_rtftables()

library(rtfreporter)

The second path. This article is about bringing a table you already have. When the statistics are in a cards / cardx ARD, the recommended route is a table plan – see Get started and Tables from an ARD.

as_rtftables() is the single entry point for turning a table object into the rtftable page objects that rtf_tables() consumes. It does two jobs:

Read the source table – its rendered body plus the metadata the RTF renderer can use (column labels, alignment, spanning headers, titles, footnotes, …);
Paginate – split the body into one rtftable per page.

This article covers the reading / conversion side. Pagination has its own guide: see Paginating with as_rtftables().

Show code

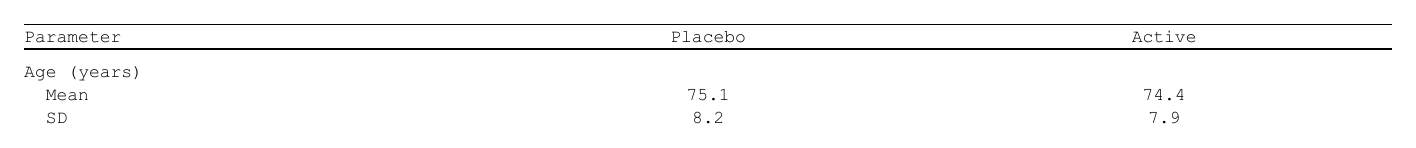

df <- data.frame(
  Parameter = c("Age (years)", "  Mean", "  SD"),
  Placebo   = c("", "75.1", "8.2"),
  Active    = c("", "74.4", "7.9"),
  stringsAsFactors = FALSE
)

pages <- as_rtftables(df)     # a list of rtftable page objects
length(pages)

#> [1] 1
class(pages[[1]])
#> [1] "rtftable"

Supported inputs

as_rtftables() accepts any of:

a gt table (gt::gt(...)),
a gt_group – gt’s multi-table container from gt::gt_group() / gt::gt_split(), and what tfrmt’s print_to_gt() returns when the spec has a page_plan. Each member table becomes its own page set, so a paginated tfrmt render can be handed over as-is,
a gtsummary table (tbl_summary(), tbl_regression(), …; converted via gtsummary::as_gt()). A tbl_split container (tbl_split_by_rows() / tbl_split_by_columns()) is likewise expanded, one member per page set,
an rtables / tern VTableTree,
a flextable table (flextable::flextable(...)),
a huxtable table (huxtable::huxtable(...)),
a plain data.frame / tibble, or
a list of any of these (flattened to one page each, names propagated).

It always returns a list of rtftable objects. For a single table where you do not need a list, use the singular convenience wrapper as_rtftable() – it is exactly as_rtftables(x, split = "none")[[1]]:

tbl <- as_rtftable(df)        # one rtftable, not a list
class(tbl)
#> [1] "rtftable"

Being a single-table wrapper, as_rtftable() accepts a gt_group or a gtsummary tbl_split only when it holds exactly one table; a multi-member container errors and points you to as_rtftables().

What the columns are called (and how to check)

Several as_rtftables() arguments select a column by name or position – group_col (grouping), sort_by (ordering), drop_cols (hiding) and collapse_repeats (repeat suppression), all covered in Paginating with as_rtftables(). They all act on the rendered body – the intermediate data.frame that as_rtftables() builds – not on the visible column headers. What that body’s columns are called depends on the source, and this is the single most common stumbling block, so it is worth knowing the rule up front.

Source	Body column names	Naming rule
`data.frame` / tibble	your own column names	exactly what you named them
gt (`gt(df)`)	gt’s column ids (default: the original data names)	follows gt
gtsummary	`label`, `stat_1`, `stat_2`, …	gtsummary’s internal ids
tfrmt	`rowname`, then the `column` values	gt stub id + your `column` levels
rtables / tern	`V1`, `V2`, `V3`, …	positional, content-independent
flextable	`V1`, `V2`, `V3`, …	positional
huxtable	`V1`, `V2`, `V3`, …	positional

Two families fall out of this:

gt-based sources (gt, gtsummary, tfrmt) keep meaningful id names – but each family’s convention differs (gt = the data names, gtsummary = label / stat_N, tfrmt = rowname + your column levels).
rtables / flextable / huxtable discard the names and renumber the columns V1, V2, … – the name tells you nothing about the content, only the position.

The universal check

Whatever the source, the body column names are exactly names(as_rtftables(x)[[1]]$data) – the same thing the selection arguments see. When in doubt, print it:

names(as_rtftable(df)$data)            # a data.frame keeps its own names
#> [1] "Parameter" "Placebo"   "Active"

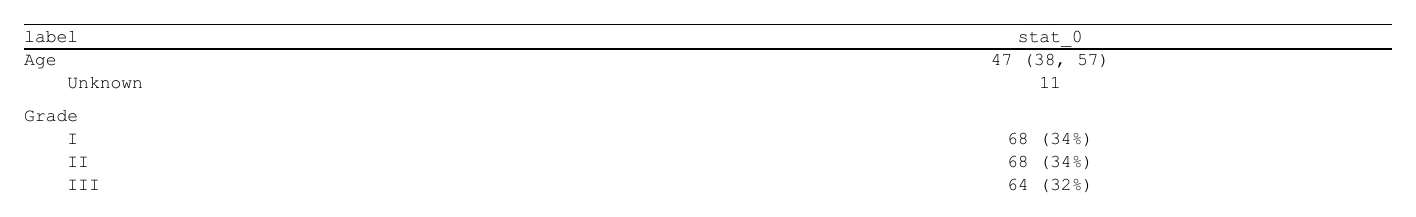

library(gtsummary)
tbl <- tbl_summary(trial[c("age", "grade")], by = NULL)
names(as_rtftables(tbl)[[1]]$data)     # gtsummary -> "label", "stat_0"
#> [1] "label"  "stat_0"

Source packages also offer their own inspectors: gtsummary’s show_header_names() lists the internal column names (label, stat_1, …) that you pass here, and gt’s gt::extract_body() shows the rendered body with its ids.

Names are carried verbatim, including ones that are not syntactic R names. A gt column called Drug A (N=60) arrives as Drug A (N=60) – spaces, parentheses and a leading digit and all – so select it with that string, and backtick it where R needs a name rather than a string:

pages |> set_col_header(c(`Drug A (N=60)` = "Drug A"))
as_rtftables(g, drop_cols = "2024 total")

(Before v0.7.54 these were passed through make.names() and arrived as Drug.A..N.60. / X2024.total, which is what this section always said they did not do; see #458.)

Two practical rules

Use the id, not the visible header. A gtsummary stat_1 column may display as “Drug (N = …)”, but you must select it as "stat_1". Passing the on-screen label fails with “column not found”.
Integer indices are the most portable. Because rtables / flextable / huxtable expose only V1, V2, …, and the gt families differ, a 1-based position works identically across every source:
```
as_rtftables(x, group_col = 1, sort_by = 1, drop_cols = 1)  # "the 1st column"
```
Reach for names when they are stable and readable (your own data.frame, or a known gtsummary layout); reach for indices when writing source-agnostic code.

Reading metadata – `read_meta`

For a rich source (gt / gtsummary / rtables / flextable / huxtable), as_rtftables() reads the render-relevant metadata so you do not have to restate it. What is carried:

Metadata	gt / gtsummary	rtables / tern	flextable	huxtable
Column (leaf) labels	yes	yes	yes	yes
Per-column alignment	yes	yes	yes	yes
Spanning headers	yes	yes	yes	yes
Column widths	yes (px/pct)	–	–	–
Title + subtitle	yes	yes	yes (caption)	yes (caption)
Footnotes / source notes	yes	yes	yes (footer)	–
In-cell footnote marks	yes (superscript)	yes (superscript)	–	–
Row-group rows + indent	yes (rendered)	yes (rendered)	yes (rendered)	yes (rendered)

For flextable the displayed text is read (header labels from set_header_labels() and colformat_*() formatting included), not the raw $body$dataset. Image/equation cells and footnote() reference marks are not carried.

For huxtable the displayed text is read with its number_format applied; header rows (header_rows()) become the column header, colspan() becomes the spanning header, and the caption() becomes the page title. huxtable has no footnote concept, so none is extracted.

Not carried (RTF cannot reproduce them, so they are intentionally ignored): per-cell bold / italic / underline, cell background fills, font/size styling, and Markdown inside labels or titles. A plain data.frame / tibble carries two pieces of metadata: column label attributes become header labels (see Finishing a plain data.frame below), and delimited column names are reconstructed into a spanning header (see header_sep); everything else (col_spec, widths, …) you set yourself (see Pass-through below).

read_meta controls the extraction:

TRUE (default) – read everything in the table above.
FALSE – use only the rendered body (ignore labels / titles / notes).
a character vector of tokens – selective opt-in, e.g. c("col_header", "alignment"). Tokens for gt/gtsummary: "col_header", "alignment", "spanning", "widths", "titles", "footnotes". For rtables/tern: "col_header", "alignment", "spanning", "titles", "footnotes", "indent", "footnote_marks". For flextable: "col_header", "alignment", "spanning", "titles", "footnotes". For huxtable: "col_header", "alignment", "spanning", "titles". For a plain data.frame / tibble: "labels" (column label attributes as header labels); unknown tokens are ignored for data.frames, so a list() mixing table objects and data.frames can share one read_meta.

Show code

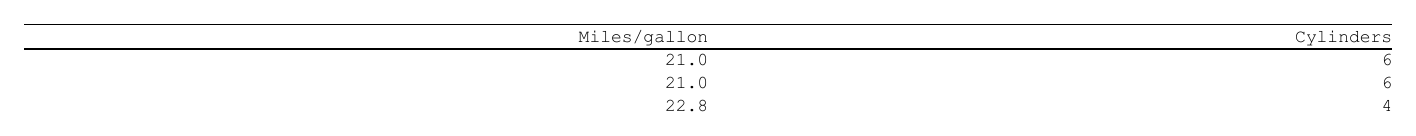

library(gt)

g <- gt(head(mtcars[, c("mpg", "cyl")], 3)) |>
  cols_label(mpg = "Miles/gallon", cyl = "Cylinders") |>
  cols_align("right", columns = c(mpg, cyl))

tbl <- as_rtftable(g)               # reads the labels + alignment
tbl$col_header                       # -> "Miles/gallon", "Cylinders"

#> [[1]]
#> [1] "Miles/gallon" "Cylinders"

Show code

# read_meta = FALSE keeps only the rendered body and ignores the labels, so no
# col_header metadata is extracted (the body's own column names are used).
plain <- as_rtftable(g, read_meta = FALSE)
plain$col_header        # NULL -- nothing extracted

#> NULL
names(plain$data)       # the body column names that headers fall back to
#> [1] "mpg" "cyl"

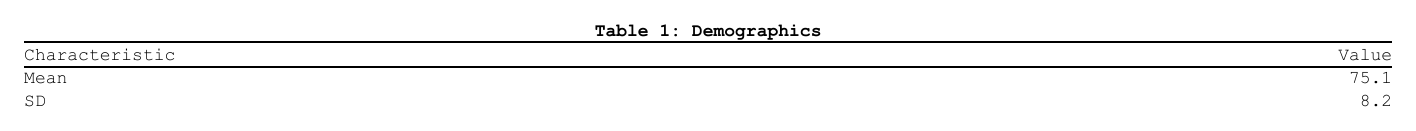

A flextable is read the same way. The displayed text is taken (so set_header_labels() relabelling and colformat_*() formatting are honoured), along with the caption (title), footer lines (footnotes), spanning headers and per-column alignment:

Show code

library(flextable)

ft <- flextable(data.frame(Param = c("Mean", "SD"), Value = c(75.13, 8.234))) |>
  set_header_labels(Param = "Characteristic") |>
  colformat_double(j = "Value", digits = 1) |>
  align(j = "Value", align = "right", part = "body") |>
  set_caption("Table 1: Demographics")

tbl <- as_rtftable(ft)
tbl$data[[2]]            # -> "75.1", "8.2"  (colformat applied)

#> [1] "75.1" "8.2"
attr(tbl, "rtf_titles") # -> "Table 1: Demographics"  (from the caption)
#> [1] "Table 1: Demographics"

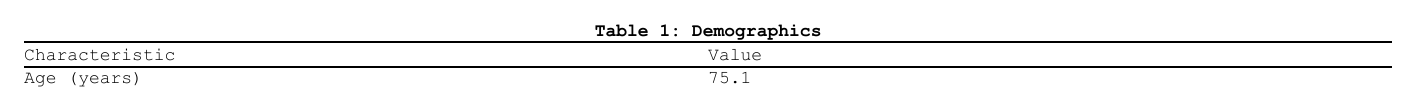

A huxtable works the same way – its number_format is applied, header rows become the column header, and the caption becomes the title:

Show code

library(huxtable)

hx <- huxtable(
  Characteristic = c("Characteristic", "Age (years)"),
  Value          = c("Value", 75.134),
  add_colnames = FALSE
)
header_rows(hx)[1]    <- TRUE          # row 1 is the column header
number_format(hx)[2, 2] <- "%.1f"      # 75.134 -> 75.1
caption(hx) <- "Table 1: Demographics"

tbl <- as_rtftable(hx)
tbl$data[[2]]            # -> "75.1"  (number_format applied)

#> [1] "75.1"
attr(tbl, "rtf_titles") # -> "Table 1: Demographics"  (from the caption)
#> [1] "Table 1: Demographics"

Numeric columns – format them first

rtfreporter renders the text it is given. A column that is still numeric when it reaches the renderer is converted with as.character(), and that is rarely what a report wants:

as.character(1/3)       #> "0.333333333333333"   -- 15 digits
as.character(100000)    #> "1e+05"               -- scientific notation

Worse, the result follows the session’s options(scipen): as.character(123456) is "123456" under scipen = 100 and "1.23456e+05" under scipen = -100. The same code and data would render differently on different machines.

So convert numbers to their display text before building the table. fmt_signif() counts the total printed digits including the integer part – what a SAP means by “report to 4 significant digits”, which is not what signif() does:

fmt_signif(c(0, 10.2, 103.4, 20.333333, 23.4463), digits = 4)
#> "0.000" "10.20" "103.4" "20.33" "23.45"

fmt_round() fixes the decimal places instead. Both take rounding = "sas" for half-away-from-zero rounding, next to R’s default banker’s rounding – they disagree on exact halves (23.445 is "23.44" under "r", "23.45" under "sas"), which matters when the output is checked against SAS.

fmt_numeric() applies either across a data frame. A clinical column holds several statistics with different formats, so by names a carrier column whose values pick the rule – and it can be the row-heading column itself, matched after trimming, so an indented " Mean" keys on "Mean":

Show code

pk |>
  fmt_numeric(
    cols = visit_cols, by = "Nominal Time (h)",
    formats = list(
      n        = list(digits = 0),
      Mean     = list(signif = 4),
      SD       = list(signif = 4),
      `CV%`    = list(digits = 1),
      .default = list(signif = 4)
    )) |>
  as_rtftables(...) |>
  set_decimal_split(cols = visit_cols)

Rows whose selected cells are all missing need no rule, so group-label and blank rows look after themselves; a non-missing cell with no matching rule and no .default is an error rather than a silent 15-digit number.

Character columns are taken as already formatted and are never touched – including by cols, which skips any non-numeric column it selects.

Format before splitting: set_decimal_split() measures the text it is given, so the decimal-point ratio is computed from "0.3333" rather than from "0.333333333333333".

Monospaced alignment – `cell_format`

Clinical tables often need count/percent columns to line up by character. cell_format re-formats the body before pagination, column by column. Pass a single formatter (applied to every data column; the row-label column 1 is left alone) or a list of them taken positionally. rtfreporter ships a few:

fmt_count_paren() – right-justify an integer count and the number inside the parentheses, e.g. "10 (11.6%)" over " 4 ( 4.7%)";
fmt_count_paren(bare = TRUE) – the same, and a bare count with no parentheses (a lone "0", a raw total) is padded into the same field;
fmt_value_paren() – the general form: the value before the parenthesis may be any text ("n=3", "3/12", a word), the (...) block is right-justified the way fmt_count_pct() does it (the padding falls before the (, never inside the parentheses), and a zero count prints without its parentheses;
fmt_right_align() – the minimal “right-justify a column” formatter and a template for writing your own;
align_count_pct = TRUE – the long-standing shorthand for the built-in "n (xx.x)" realigner.

A formatter is either the function or its name as a string, with the fmt_ prefix optional – handy when the choice comes from a config file or a recipe rather than from code:

as_rtftables(x, cell_format = "value_paren")
as_rtftables(x, cell_format = list(NULL, "right_align", my_fmt))
as_rtftables(x, align_count_pct = "count_paren")   # the switch takes a name too

Show code

counts <- data.frame(
  Group = c("A", "B"),
  n_pct = c("4 (4.7%)", "10 (11.6%)"),
  stringsAsFactors = FALSE
)
tbl <- as_rtftable(counts, cell_format = fmt_count_paren)
tbl$data$n_pct                       # both cells padded to one width

#> [1] " 4 ( 4.7%)" "10 (11.6%)"

fmt_value_paren() is the one to reach for when a column mixes shapes – a plain N, a count with a percentage, a zero, a text value:

Show code

mixed <- data.frame(
  Group = c("N", "Responders", "  Mild", "  Severe"),
  stat  = c("86", "12 (100)", "6 (50.0)", "0 (0.0)"),
  stringsAsFactors = FALSE
)
as_rtftable(mixed, cell_format = "value_paren")$data$stat

#> [1] "86       " "12  (100)" " 6 (50.0)" " 0       "

 86
 12  (100)      <- no decimals: flush against the ")"
  6 (50.0)
  0             <- a zero count prints on its own

Writing your own `cell_format` function

When none of the built-ins matches your data’s notation, write your own. The contract is small:

Signature. The framework calls your function with one argument – a character vector holding the cells of a single column. (The built-ins also accept a second nbsp = argument with a default, but cell_format never passes it, so a plain function(x) is enough.) Your function is called once per column, and is not told which column it is, so base every decision on x alone.
Return value. A character vector of the same length as x – one element per row. Returning a different length is an error; never drop or add rows.
Leave non-matching cells alone. Cells you do not intend to touch – empty group-label cells, totals, anything not matching your pattern – must be returned unchanged.
Pad with the non-breaking space " ", not a normal space. RTF and Word collapse runs of ordinary spaces, which would silently undo your alignment.
Which columns it sees. A single function is applied to columns 2..ncol (column 1 is the row label, left alone by clinical convention). To target specific columns, pass a list instead: cell_format[[j]] formats column j, and NULL entries leave a column untouched.

Here is a complete formatter that appends a unit and right-aligns a numeric column, leaving blanks and non-numbers as they are:

Show code

# Right-align a numeric column and append a unit (e.g. "mg"), padding on the
# left with non-breaking spaces so the values line up in a monospaced font.
fmt_with_unit <- function(x, unit = "mg", nbsp = " ") {
  x <- as.character(x)
  is_num <- grepl("^[0-9]+(\\.[0-9]+)?$", trimws(x))   # which cells to touch
  labelled <- x
  labelled[is_num] <- paste0(trimws(x[is_num]), " ", unit)
  width <- max(nchar(labelled[is_num]), 0L)            # widest labelled cell
  out <- x
  out[is_num] <- formatC(labelled[is_num], width = width)   # right-justify
  gsub(" ", nbsp, out, fixed = TRUE)                   # protect the padding
}

dose <- data.frame(
  Arm  = c("Low", "High", "Total"),
  Dose = c("5", "12.5", ""),                           # blank cell left as-is
  stringsAsFactors = FALSE
)

# A list targets one column by position; column 1 (Arm) is left untouched.
tbl <- as_rtftable(
  dose,
  cell_format = list(NULL, function(x) fmt_with_unit(x, unit = "mg"))
)
tbl$data$Dose

#> [1] "   5 mg" "12.5 mg" ""

Because cell_format passes only the column vector, wrap a parameterised formatter in a one-argument closure (function(x) fmt_with_unit(x, unit = "mg")) to fix its extra arguments – exactly as shown above.

Column widths – `auto_width`

By default columns share the width evenly. With auto_width = TRUE each column is sized to its widest content (header label or data cell) so long labels do not wrap; the widths are computed once and applied to every page:

tbl <- as_rtftable(df, auto_width = TRUE)
tbl$column_widths_twips
#> [1] 1479 1046  938

Add table_width_twips = to scale those widths to a total (e.g. to fill, or fit within, the writable page width). An explicit column_widths_twips / col_rel_width always wins over auto_width.

Pass-through to `rtftable()`

Any further argument is forwarded to [rtftable()] for every page, so you can set the table’’s appearance in the same call – and your explicit values always win over the metadata extracted from the source:

Show code

tbl <- as_rtftable(
  df,
  border        = "tfl",
  col_header    = c("Parameter", "Placebo (N=86)", "Active (N=84)"),
  col_rel_width = c(2, 1, 1),
  row_height_twips = 280L
)
tbl$col_header

#> [[1]]
#> [1] "Parameter"      "Placebo (N=86)" "Active (N=84)"

See the page & document setup article for document-wide settings, and ?rtftable for the full list of per-table options (alignment, per-column/-cell styles and colours, blank rows, …).

Titles and footnotes

When the source carries a title / subtitle or source notes, as_rtftables() attaches them to each page as the rtf_titles / rtf_footnotes attributes, and rtf_tables() renders them automatically – you do not pass them again:

doc <- rtf_document() |>
  rtf_section(page = 1, header = NULL, footer = NULL) |>
  rtf_tables(as_rtftables(my_gt_table))   # gt's title/source notes flow through

For a plain data.frame (no metadata), set them on rtf_tables() with titles = / footnotes = instead.

Spanning headers from delimited names – `header_sep`

gt, gtsummary, rtables/tern, flextable and huxtable all carry real spanning (multi-row) header metadata, which as_rtftables() reads directly. A plain data.frame has none: the only place the nesting can live is the column names. A common producer is ydisctools::pivot_stats_wider(), which spreads grouping columns into headers joined by ____:

group1 group2 label   cohort1____trt1 cohort1____trt2 cohort2____trt1 cohort2____trt2
Hoge   Sex    Male     11 (55.0)        9 (45.0)        13 (65.0)       7 (35.0)
Hoge   Sex    Female    9 (45.0)       11 (55.0)        7 (35.0)       13 (65.0)

as_rtftables() reconstructs the two-level header from those names automatically – cohort1 / cohort2 become spanners over their trt1 / trt2 leaf columns, and the id columns (group1, group2, label) keep their name on the leaf row:

# `df` produced by ydisctools::pivot_stats_wider(); names use the "____" sep.
as_rtftables(df)            # 2-row header reconstructed by default

header_sep controls the delimiter(s). Its default recognizes both "____" (ydisctools) and "___tlang_delim___" (the delimiter tfrmt puts in its flattened column names), so a data.frame from either tool just works. Pass your own separator(s) to override, or NULL to keep the plain one-row header:

as_rtftables(df, header_sep = "::")     # split on your own delimiter
as_rtftables(df, header_sep = NULL)     # disable: use names(df) verbatim

Adjacent columns merge into one spanning cell only when they share both the label and the same ancestor path, so a trt1 under cohort1 never merges with a trt1 under cohort2. An explicit col_header = (passed through to rtftable()) always wins over the reconstructed one.

With the "____" separator a doubled separator ("________") splits to an empty middle segment, i.e. a blank cell at that header level – useful to align a column that skips an intermediate spanner (e.g. an Overall________n column sitting beside Drug____Dose____n columns).

This only applies to plain data.frame input; framework tables keep using their own spanning metadata.

Finishing a plain data.frame

A framework table (gt / rtables / …) arrives finished: row-group labels are interleaved, children are indented, headers are labelled. A tidy data.frame is not – it usually looks like “hierarchy columns + statistic columns”. Two finishing tools close that gap without leaving base R.

Hierarchy columns into a stub – `stub_cols()`

stub_cols() merges hierarchy columns (parent first, leaf last) into one stub column: each parent value becomes its own full-width label row, and the leaf rows under it are indented with non-breaking spaces – the same layout the gt / rtables / tfrmt adapters emit, produced here from plain columns.

Show code

ae <- data.frame(
  soc = c("", "Cardiac disorders", "Cardiac disorders",
          "Gastrointestinal disorders"),
  pt  = c("Any adverse event", "Atrial fibrillation", "Bradycardia",
          "Nausea"),
  n   = c("9 (6.3%)", "3 (2.1%)", "1 (0.7%)", "5 (3.5%)"),
  stringsAsFactors = FALSE
)

tbl <- stub_cols(ae, vars = c("soc", "pt"),
                 label = "System Organ Class / Preferred Term")
tbl

System Organ Class / Preferred Term	n
Any adverse event	9 (6.3%)
Cardiac disorders
Atrial fibrillation	3 (2.1%)
Bradycardia	1 (0.7%)
Gastrointestinal disorders
Nausea	5 (3.5%)

Note the "Any adverse event" summary row: its parent cell is empty (""), so it gets no label row and no indent – it stays flush left at the top. Label rows hold NA in the statistic columns, which renders as an empty cell.

Group-summary rows (the AE pattern)

Adverse-event tables usually carry a group-level count as well: the total for a System Organ Class, printed on the SOC row itself, above its indented preferred terms. In the input that count sits on a row whose leaf is either NA / "" or a repeat of the parent value. stub_cols() folds such a row’s statistics onto the group’s label row – no separate indented leaf – via the group_summary argument (on by default):

Show code

ae_sum <- data.frame(
  soc = c("Cardiac disorders", "Cardiac disorders", "Cardiac disorders"),
  pt  = c(NA, "Atrial fibrillation", "Bradycardia"),   # NA leaf = SOC summary
  n   = c("4 (2.8%)", "3 (2.1%)", "1 (0.7%)"),
  stringsAsFactors = FALSE
)
stub_cols(ae_sum, vars = c("soc", "pt"))

soc / pt	n
Cardiac disorders	4 (2.8%)
Atrial fibrillation	3 (2.1%)
Bradycardia	1 (0.7%)

The 4 (2.8%) SOC total lands on the Cardiac disorders label row. A leaf that repeats its parent (e.g. soc = "Cardiac disorders", pt = "Cardiac disorders") is folded the same way. Control which markers count with group_summary: "empty" (the NA / "" leaf), "parent" (the repeated-parent leaf), both (the default c("empty", "parent")), or "none" to switch the folding off. Demographic tables – where the leaf is a statistic name such as "n" or "Mean (SD)", never NA and never equal to the parent – are unaffected either way, so their label rows keep their empty cells and the stats stay on the indented leaf rows.

Because the output is an ordinary data.frame with baked-in indentation, everything downstream works unchanged – group_by = "auto" detects the indent, the group-aware splits keep a label row with its children and append " (Cont.)" when a group continues, and blank_rows = "between_groups" separates the groups:

pages <- as_rtftables(tbl, split = "group_force", max_rows = 20,
                      blank_rows = "between_groups")

With more than two vars each level indents one step further; a run of the same parent value gets one label row, so sort the input first (or use sort_by) if the hierarchy is scattered.

Column `label` attributes as header labels

Clinical data.frames read via haven / labelled / xportr usually carry a label attribute on each column. The data.frame branch of as_rtftables() reads it (the "labels" read_meta token, on by default): a labelled column uses its label as the header label, an unlabelled one keeps its name, and an explicit col_header = still always wins.

Show code

df <- data.frame(param = c("Age", "Sex"), val = c("75.1", "53%"),
                 stringsAsFactors = FALSE)
attr(df$param, "label") <- "Parameter"

as_rtftable(df)$col_header               # "Parameter", "val"

#> [[1]]
#> [1] "Parameter" "val"
as_rtftable(df, read_meta = FALSE)$col_header  # NULL -> names(df) used
#> NULL

The labels feed the header_sep reconstruction too, so a label containing "____" splits into a spanning header exactly like a delimited column name. stub_cols() preserves the label attributes of the columns it keeps, and uses the labels of the columns it merges for its default stub header.

Coming from `reporter::create_table()`

If you know the reporter package’s table spec, the finishing features map to existing arguments – there is no spec object to build:

reporter	rtfreporter
`stub(vars)` + `define(label_row=)` / `define(indent=)`	`stub_cols(vars=)` before converting
`use_attributes = "label"`	`read_meta` `"labels"` token (default on)
`define(visible = FALSE)`	`drop_cols`
`define(dedupe = TRUE)`	`collapse_repeats`
`define(blank_after = TRUE)`	`blank_rows = blank_rows_by_change(...)`
`define(page_break = TRUE)`	`split = "by_value", group_col =`
`define(align =, width =, label =)`	`col_spec` / `auto_width` / `col_header`
`spanning_header()`	`header_sep` delimited names, or `col_header`
`create_table(first_row_blank =)`	`blank_row_first`
`create_table(show_cols =)`	subset the data.frame, or `drop_cols`
sorting	`sort_by` / `sort_desc`

Pagination

Everything above is independent of how the table is split into pages. When the body is longer than one page, control the split with as_rtftables()s split / max_rows / group_col arguments (or a custom function), order the rows first with sort_by / sort_desc, and hide a grouping / sort-key column from the output with drop_cols – all of that is covered in Paginating with as_rtftables().

See ?as_rtftables for the complete argument reference and the per-source what is carried table.

Where next

gt in detail — what is read from a gt table
Pagination — splitting the result across pages
The pharmaverse catalog — the same table from five sources

The four recipes (?rtfreporter-recipes) are the same ground covered as runnable help-page examples: demographics, adverse events, PK and laboratory, each data-in to RTF-out.

Supported inputs

What the columns are called (and how to check)

The universal check

Two practical rules

Reading metadata – read_meta

Numeric columns – format them first

Monospaced alignment – cell_format

Writing your own cell_format function

Column widths – auto_width

Pass-through to rtftable()

Titles and footnotes

Spanning headers from delimited names – header_sep

Finishing a plain data.frame

Hierarchy columns into a stub – stub_cols()

Group-summary rows (the AE pattern)

Column label attributes as header labels

Coming from reporter::create_table()

Pagination

Where next

Reading metadata – `read_meta`

Monospaced alignment – `cell_format`

Writing your own `cell_format` function

Column widths – `auto_width`

Pass-through to `rtftable()`

Spanning headers from delimited names – `header_sep`

Hierarchy columns into a stub – `stub_cols()`

Column `label` attributes as header labels

Coming from `reporter::create_table()`
