Paginating tables with as_rtftables()

library(rtfreporter)

as_rtftables() turns a table into a list of rtftable page objects – one per RTF page – ready to hand to rtf_tables(). Pagination has three pillars, and this article is organised around them:

How the rows are split into pages – the split = strategies (and custom / pre-split / hybrid variants).
Which column those page-shaping operations act on, and what to do with it – one shared idea behind group_col, group_by, sort_by, collapse_repeats and drop_cols (see Selecting a column).

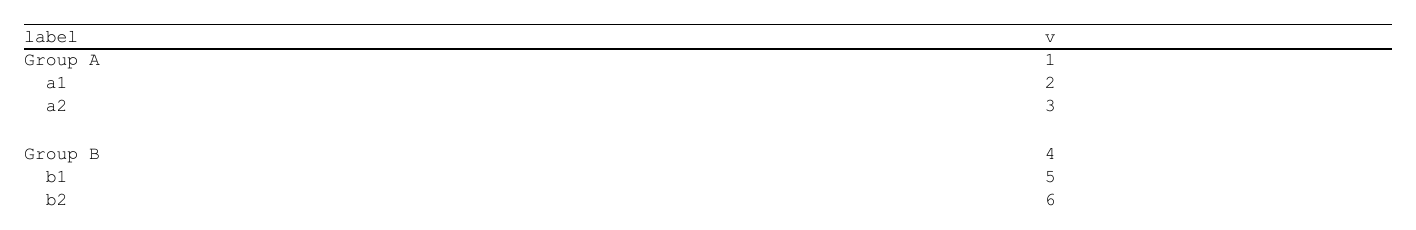

Blank separator rows – inserting and counting the gaps between groups.

We start with the split strategies:

the built-in split strategies,
a custom split function,
pre-splitting the data yourself, and
an advanced hybrid that composes a built-in strategy.

Throughout we use a small demographics-style table. By the clinical-TFL convention, a row whose first column starts with a non-space character opens a group, and the indented rows below it are that group’s members – which is how as_rtftables() detects groups by default (group_col = NULL, group_by = "auto"). Tables that mark groups differently – a repeated key column, or a group label with blank member rows – are handled by group_col / group_by, covered under Shared knobs below.

Show code

df <- data.frame(
  Parameter = c("Age (years)", "  Mean", "  SD", "  Min", "  Max",
                "Sex",         "  F", "  M",
                "Race",        "  White", "  Black", "  Asian", "  Other"),
  Value     = c("",     "75.1", "8.2", "50", "89",
                "",     "179 (58%)", "127 (42%)",
                "",     "273 (89%)", "29 (9%)", "2 (1%)", "2 (1%)"),
  stringsAsFactors = FALSE
)

A tiny helper to show how a result was paginated – it prints the row-label column of each returned page:

Show code

show_pages <- function(pages) {
  for (i in seq_along(pages)) {
    nm <- names(pages)[i]
    tag <- if (!is.null(nm) && nzchar(nm)) sprintf(" (%s)", nm) else ""
    cat(sprintf("--- Page %d%s ---\n", i, tag))
    cat(paste0("  ", pages[[i]]$data[[1L]]), sep = "\n")
    cat("\n")
  }
  invisible(pages)
}

1. Built-in split strategies

Pass split = one of the built-in strategy names.

`"none"` (default) – one page

The whole table stays on a single page; no row limit is checked.

pages <- as_rtftables(df)            # split = "none"
length(pages)
#> [1] 1

`"rows"` – cut at explicit positions

Give split_rows the row numbers at which a new page should start. Use this when you know exactly where the breaks go.

pages <- as_rtftables(df, split = "rows", split_rows = c(6, 9))
show_pages(pages)
#> --- Page 1 ---
#>   Age (years)
#>     Mean
#>     SD
#>     Min
#>     Max
#>
#> --- Page 2 ---
#>   Sex
#>     F
#>     M
#>
#> --- Page 3 ---
#>   Race
#>     White
#>     Black
#>     Asian
#>     Other

`"group_force"` – fill `max_rows`, repeat the group label on a cut

Pack up to max_rows rows on each page. When a page boundary falls inside a group, a continuation row is inserted at the top of the next page repeating the group label with a " (Cont.)" suffix, so the reader knows the group carries over.

pages <- as_rtftables(df, split = "group_force", max_rows = 6)
show_pages(pages)
#> --- Page 1 ---
#>   Age (years)
#>     Mean
#>     SD
#>     Min
#>     Max
#>
#> --- Page 2 ---
#>   Sex
#>     F
#>     M
#>   Race
#>     White
#>     Black
#>
#> --- Page 3 ---
#>   Race (Cont.)
#>     Asian
#>     Other

`"group_safe"` – never break a group across pages

Pack whole groups onto a page; a group that would overflow is pushed to the next page instead of being split. (A single group larger than max_rows is still force-split as a fallback.)

pages <- as_rtftables(df, split = "group_safe", max_rows = 6)
show_pages(pages)
#> --- Page 1 ---
#>   Age (years)
#>     Mean
#>     SD
#>     Min
#>     Max
#>
#> --- Page 2 ---
#>   Sex
#>     F
#>     M
#>
#> --- Page 3 ---
#>   Race
#>     White
#>     Black
#>     Asian
#>     Other

`"by_value"` – one page per group, named by the group

Emit exactly one page per detected group; the returned list is named by the group label (which rtf_tables() can use, e.g. with auto_section = TRUE).

pages <- as_rtftables(df, split = "by_value")
names(pages)
#> [1] "Age (years)" "Sex"         "Race"

Reusing a strategy

Earlier versions also exported a page_split_*() factory per strategy, so a configured splitter could be built once and passed around. They were retired before the first release: a factory carried its own group_col, which meant the group column could be declared in two places at once, and the two did not always agree. Every setting now has exactly one place to live – alongside split – so reuse is a list of arguments rather than an object:

args  <- list(split = "group_safe", max_rows = 6)
pages <- do.call(as_rtftables, c(list(df), args))
length(pages)
#> [1] 3

Shared knobs

These arguments shape pagination regardless of the strategy:

Argument	Effect
`max_rows`	Maximum data rows per page (required for the group strategies).
`group_col`	Which column groups are detected on: a name, a 1-based index, or `NULL` for column 1.
`group_by`	How a group boundary is found on `group_col`: `"auto"`, `"indent"`, `"value"`, or `"filled"` (see below).
`min_group_rows`	Widow/orphan control: avoid stranding a lone group header (or too few of its rows) at a page boundary. Set `0` to disable.
`cont_label`	The continuation suffix (`" (Cont.)"`) repeated on a mid-group cut.

Selecting a column

Five arguments operate on one column of the rendered body, and they all name that column the same way – by a column name or a 1-based integer index, in the body’s coordinate space:

Argument	What it does to the column
`group_col`	detects group boundaries on it (with `group_by`)
`sort_by`	orders the rows by it, before the split
`collapse_repeats`	blanks consecutive repeated values in it
`drop_cols`	hides it from the printed pages

Because they share one coordinate space, the same key works across them – e.g. sort on a column, group on it, and hide it: as_rtftables(x, sort_by = "k", group_col = "k", drop_cols = "k").

Two things make the name source-dependent, so they are worth repeating here:

It is the body column id, not the visible header. A gtsummary stat_1 column shows as “Drug (N = …)” but is selected as "stat_1".
The names differ by source – your own for a data.frame, gt ids for gt / gtsummary / tfrmt, and V1, V2, … for rtables / flextable / huxtable. An integer index is the most portable choice across sources. Check the actual names with names(as_rtftables(x)[[1]]$data). The full per-source table and check recipes are in What the columns are called.

Choosing how groups are detected – `group_by`

group_col picks the column; group_by picks the logic used to find where one group ends and the next begins on that column:

`group_by`	A row starts a new group when its `group_col` cell …
`"indent"`	is non-empty and does not start with whitespace (space / tab / non-breaking space); indented or empty cells are members. This is the usual clinical row-label layout.
`"value"`	differs from the row above it (each maximal run of equal values is one group).
`"filled"`	is non-empty; `NA` / `""` cells belong to the group above (the label appears once, on the group’s first row).
`"auto"`	(default) picks one from the column’s content: indentation present → `"indent"`; else empty cells interspersed → `"filled"`; else → `"value"`.

Show code

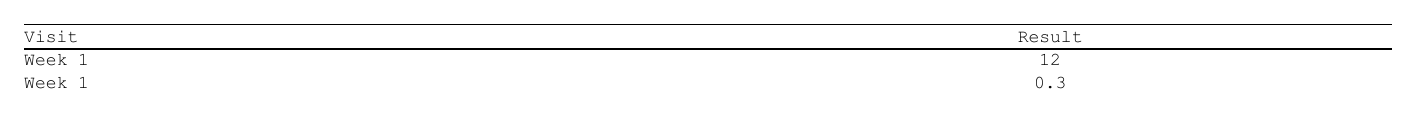

# Group by a repeated key column (value), regardless of indentation.
df_key <- data.frame(
  Visit = c("Week 1", "Week 1", "Week 2", "Week 2", "Week 4"),
  Result = c("12", "0.3", "14", "0.4", "11")
)
pages <- as_rtftables(df_key, split = "group_safe", max_rows = 2,
                      group_col = "Visit", group_by = "value")
length(pages)                                  # one page per Visit block

#> [1] 3

Show code

# A group label on its first row, blank members below it (filled).
df_filled <- data.frame(
  Group = c("Group A", "", "", "Group B", ""),
  Value = c("", "1.2", "3.4", "", "5.6")
)
pages <- as_rtftables(df_filled, split = "group_safe", max_rows = 3,
                      group_by = "filled")
length(pages)

#> [1] 2

The grouping column need not be the first column – name it (or, for portability across sources, give its integer index; see Selecting a column):

Show code

df2 <- data.frame(
  Parameter = c("ALT", "AST", "ALT", "AST"),
  Visit     = c("Week 1", "Week 1", "Week 2", "Week 2"),
  Value     = c("12", "20", "14", "22")
)
pages <- as_rtftables(df2, split = "group_safe", max_rows = 2,
                      group_col = 2L, group_by = "value")   # group on Visit
length(pages)

#> [1] 2

Ordering rows before the split – `sort_by` / `sort_desc`

group_col chooses where the breaks fall, but it does not reorder anything – the body is split in the order it arrives. sort_by orders the body rows before pagination, so group detection, the " (Cont.)" labels and any blank_rows positions all see the sorted order. Name one or more sort keys (in the input body’s coordinates, the same space as group_col and drop_cols), with optional per-key direction via sort_desc.

Show code

df_s <- data.frame(
  Region = c("West", "East", "West", "East"),
  Site   = c("S2",   "S1",   "S1",   "S2"),
  N      = c("12",   "9",    "20",   "4")
)
# Region ascending, then Site ascending.
as_rtftables(df_s, sort_by = c("Region", "Site"))[[1]]$data[c("Region", "Site")]

#>   Region Site
#> 1   East   S1
#> 2   East   S2
#> 3   West   S1
#> 4   West   S2

sort_desc is a single TRUE (all keys descending) or one logical per key:

# Region ascending, Site descending.
as_rtftables(df_s, sort_by = c("Region", "Site"),
             sort_desc = c(FALSE, TRUE))[[1]]$data$Site
#> [1] "S2" "S1" "S2" "S1"
#> "S2" "S1" "S2" "S1"

The sort is stable (rows that compare equal keep their input order) and NA keys sort last, regardless of direction. It is meant for flat / tabular bodies – a data.frame, or a pre-flattened table; a gt / rtables body whose group-label and child rows are already interleaved should be sorted at the source (before the table is built), since reordering its rendered rows would scramble that hierarchy. To mix name and index keys, pass a list().

A sort key is often a column you do not want printed – a numeric ordering key, a raw priority. Combine sort_by with drop_cols to order on it and then hide it:

Show code

df_c <- data.frame(
  soc_ord = c(2, 1, 2, 1),                  # hidden ordering key
  Term    = c("Rash", "Angina", "Pruritus", "Failure"),
  N       = c("9", "12", "4", "7")
)
res <- as_rtftables(df_c, sort_by = "soc_ord", drop_cols = "soc_ord")[[1]]$data
names(res)            # the key is gone

#> [1] "Term" "N"
res$Term              # but the rows are ordered by it
#> [1] "Angina"   "Failure"  "Rash"     "Pruritus"
#> [1] "Angina" "Failure" "Rash" "Pruritus"

Blanking repeated values – `collapse_repeats`

A "value"-style column carries the group key on every row, but tables usually print the key only once per run and leave the repeats blank – the "filled" layout. collapse_repeats performs exactly that conversion: name one or more columns and each run of equal values is suppressed to a single visible cell, the rest replaced with NA (which renders as an empty cell – no row is removed, only the text is hidden).

Show code

df_rep <- data.frame(
  Group = c("All", "All", "BORC", "BORC", "BORC", "BORC",
            "HOGE", "HAGE", "HOGE", "HAGE", "HAGE")
)
as_rtftables(df_rep, collapse_repeats = "Group")[[1]]$data$Group

#>  [1] "All"  NA     "BORC" NA     NA     NA     "HOGE" "HAGE" "HOGE" "HAGE"
#> [11] NA
#> "All" NA "BORC" NA NA NA "HOGE" "HAGE" "HOGE" "HAGE" NA

Where does this sit relative to group_by? It runs after value-based grouping and before the table is shown as "filled": the suppression is applied per page, after the split, so the pagination still sees the original repeated values. Group boundaries and the " (Cont.)" continuation labels stay correct, and a group continued onto the next page shows its label again at the top of that page (each page restarts the suppression).

Several columns are suppressed hierarchically: the first listed column is collapsed on its own value, and each later column on the combination of itself with all earlier listed columns – so a change in any higher column restarts the lower column’s run.

Show code

df_hier <- data.frame(
  Soc = c("Cardiac", "Cardiac", "Cardiac", "Vascular", "Vascular"),
  Pt  = c("Angina",  "Angina",  "Failure", "Angina",   "Angina")
)
res <- as_rtftables(df_hier, collapse_repeats = c("Soc", "Pt"))[[1]]$data
res$Pt   # row 3 keeps "Failure"; row 5 blanks the repeated "Angina" under Vascular

#> [1] "Angina"  NA        "Failure" "Angina"  NA
#> "Angina" NA "Failure" "Angina" NA

Hiding a grouping / carrier column – `drop_cols`

group_col chooses which column drives the split, but that column is normally printed too. Often you want to break or group on a key that should not appear in the report – a numeric ordering key, a raw group id, a sort helper. drop_cols names columns (in the input body’s coordinates – the same space as group_col and collapse_repeats) that are kept through the split and then removed from every page before it is rendered.

Show code

df_carrier <- data.frame(
  soc_ord = c(1, 1, 2, 2),                  # hidden ordering / group key
  Term    = c("Angina", "Failure", "Rash", "Pruritus"),
  N       = c("12", "7", "9", "4")
)
# Group + page on the hidden key, but print only Term + N.
pages <- as_rtftables(df_carrier, split = "by_value",
                      group_col = "soc_ord", drop_cols = "soc_ord")
names(pages)                 # pages still named by the group value: "1", "2"

#> [1] "1" "2"
names(pages[[1]]$data)       # the carrier column is gone: "Term", "N"
#> [1] "Term" "N"
#> [1] "Term" "N"

The column is present while the split runs – so group_col, collapse_repeats, and blank_rows_by_change() can all reference it – and only then dropped. All position-indexed metadata (column headers, including spanning headers; col_spec; column widths; col_header_align; row_title; per-cell cell_styles) is reindexed automatically to the columns that remain, so explicit headers/widths you pass for the full table still line up after the hide.

A few interactions worth knowing:

drop_cols, group_col, and collapse_repeats all index the pre-drop input body.
For split = "by_value" the page names come from the group_col value, so that column can be hidden and the pages are still named by it (above).
Under "group_safe" / "group_force" the " (Cont.)" marker is written into the group_col cell. If you hide that very column the marker is removed with it, so group on the visible label column when you want the continuation label to show.
drop_cols must leave at least one column to display.

To mix column names and integer indices, pass a list() (a plain c() would coerce to one type): drop_cols = list("soc_ord", 3).

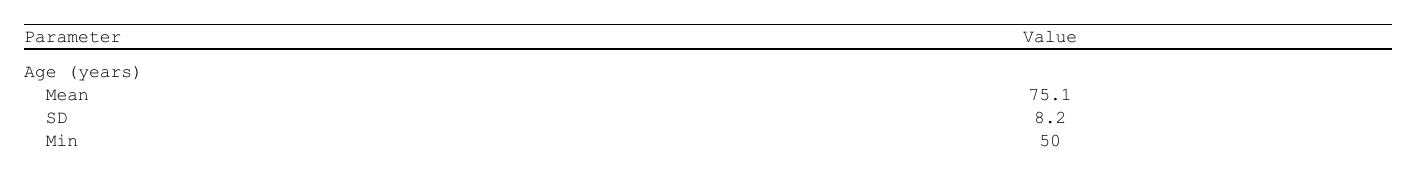

2. A custom split function

When the built-ins don’t fit, pass a function as split =. It is called on the (cell-formatted) body and must return a list of data.frames – one per page. Named list elements become page names, exactly like "by_value".

Show code

# Fixed blocks of four rows, ignoring groups entirely.
by_four <- function(df, ...) {
  split(df, (seq_len(nrow(df)) - 1L) %/% 4L)
}
pages <- as_rtftables(df, split = by_four)
length(pages)

#> [1] 4

Your function only implements the split; the rest of the pipeline (blank rows, metadata, per-page assembly, and header/width/style replication) is applied to its output unchanged. Write it with a ... so it tolerates the context arguments (max_rows, group_col, group_by, cont_label, min_group_rows) it does not use.

To re-create the " (Cont.)" continuation row the built-in group strategies add, use add_cont_label():

Show code

by_four_cont <- function(df, cont_label = " (Cont.)", ...) {
  parts <- split(df, (seq_len(nrow(df)) - 1L) %/% 4L)
  for (i in seq_along(parts)) {
    if (i > 1L) parts[[i]] <- add_cont_label(parts[[i]], "…continued",
                                             cont_label = cont_label)
  }
  parts
}
show_pages(as_rtftables(df, split = by_four_cont))

#> --- Page 1 (0) ---
#>   Age (years)
#>     Mean
#>     SD
#>     Min
#>
#> --- Page 2 (1) ---
#>   …continued (Cont.)
#>     Max
#>   Sex
#>     F
#>     M
#>
#> --- Page 3 (2) ---
#>   …continued (Cont.)
#>   Race
#>     White
#>     Black
#>     Asian
#>
#> --- Page 4 (3) ---
#>   …continued (Cont.)
#>     Other

3. Two levels at once – `page_by`

group_col says where a group boundary is; page_by says where a page boundary is, and what the page is called. Different jobs, so different arguments – and together they express the layout a clinical table usually wants: a BY variable (period, cohort, analysis set) owns the page, while an inner group (a parameter block) is kept whole inside it.

Show code

as_rtftables(
  lab,
  page_by   = "period",      # new page when it changes; the value is the name
  split     = "group_safe",  # from here on: inside one period only
  group_by  = "indent",
  max_rows  = 20,
  drop_cols = "period"       # page_by does not imply dropping the column
)
#>  "Period 1"  "Period 1"  "Period 2"  "Period 2"  "Period 3"

The body is partitioned on runs of the page_by value first; every other pagination setting then applies within one partition – split, max_rows, group_col, group_by, min_group_rows, cont_label, blank_rows, collapse_repeats. split = "by_value" on its own cannot do this: the group it protects is the BY column itself, so a parameter block inside a period is cut wherever max_rows happens to fall.

Every page a partition makes carries the same heading – the page_by value – because a page name is what rtf_tables(auto_section = TRUE) / auto_title = TRUE prints. A section opens where the heading changes, so one partition is one section of however many pages it needed, with nothing to clean up.

The names themselves stay unique: a heading used by several pages carries a "...n" tail, so the list can still be addressed by name (R returns the first match for a repeated name – which is what pages[["Period 1"]] and RStudio’s View() would otherwise show you). The tail is not part of the heading.

Show code

pages <- as_rtftables(lab, page_by = "period", split = "group_safe",
                      group_by = "indent", max_rows = 20, drop_cols = "period")
names(pages)
#>  "Period 1...1"  "Period 1...2"  "Period 2...1"  "Period 2...2"

doc |> rtf_tables(pages, auto_section = TRUE)   # 2 sections headed "Period 1" / "Period 2"

Two details worth knowing:

group_col left NULL defaults to the first column not named in page_by. Without that it would be column 1 – the BY column, where every row of a partition carries the same value and group_by = "indent" finds no structure at all.
na and cell_format run body-wide, before the partition, so one column width is shared by every page; split_rows, blank_rows positions and count_blank_rows are resolved inside each partition.

The three axes compose in one pipeline – pages by BY value, then rows, then columns:

as_rtftables(lab, page_by = "period", split = "group_safe",
             group_by = "indent", max_rows = 20, drop_cols = "period") |>
  paginate_cols(at = 6, order = "down")

With split = "by_value" the split makes a page per group value, and then the group is the outer axis with page_by inside it – a group’s pages stay together, the BY values running in order, and every page of the group carries the group’s name:

as_rtftables(ae, split = "by_value", group_col = "cohort", page_by = "period",
             drop_cols = c("cohort", "period"))
#>  "Cohort A"  "Cohort A"  "Cohort B"  "Cohort B"

The two values are never joined into one name: the name is the section heading, so "Cohort A / P1" would cut each cohort into a section per period. Both stay readable per page in attr(page$data, "rtf_paginate_meta") (page_group, page_by).

Add paginate_cols() and the column block takes its place between them or under them, as order says (see Which axis the page number advances along): "across" gives group / column block / page_by, "down" gives group / page_by / column block.

4. Pre-splitting the data yourself

Sometimes the simplest thing is to split the data.frame before calling as_rtftables() and hand it a list. as_rtftables() flattens a list input into one page per element, carrying the list’s names through as page names.

Show code

top    <- df[1:8, ]
bottom <- df[9:13, ]

pages <- as_rtftables(list("Demographics (1 of 2)" = top,
                           "Demographics (2 of 2)" = bottom))
names(pages)

#> [1] "Demographics (1 of 2)" "Demographics (2 of 2)"

This is handy when the split rule lives in your own data-wrangling code (for example split(df, df$SOC) for a list of adverse-event tables), or when each page comes from a different source entirely.

5. Advanced: post-processing a built-in split

A custom split = function can run the built-in machinery first and then adjust its output – a hybrid of approaches 1 and 2. The simplest way is to call as_rtftables() for the split and post-process the pages:

pages <- as_rtftables(df, split = "group_safe", max_rows = 6)
pages <- Filter(function(p) nrow(p$data) > 0L, pages)   # keep non-empty pages
length(pages)
#> [1] 3

Blank separator rows

Clinical tables often need blank separator rows – empty rows that put a little air between groups. They are not part of the data; they are layout, added on top of the body.

Blank rows and the row count

This matters for pagination: max_rows counts data rows only. Blank rows are inserted into each page after the split, so they do not use up the max_rows budget. For example, packing whole groups with max_rows = 6 and a blank between groups:

Show code

df_g <- data.frame(
  label = c("Group A", "  a1", "  a2", "Group B", "  b1", "  b2",
            "Group C", "  c1", "  c2"),
  v = as.character(1:9), stringsAsFactors = FALSE
)

pages <- as_rtftables(df_g, split = "group_safe", max_rows = 6,
                      blank_rows = "between_groups")
nrow(pages[[1]]$data)          # 6 data rows -- the max_rows budget

#> [1] 6
pages[[1]]$blank_rows          # plus a blank after row 3 (A -> B), not counted
#> [1] 3

So page 1 shows six data rows and a separator – seven rows on the page – but only the six data rows counted toward max_rows.

To make the blanks count – so a page (data + blanks) never exceeds max_rows – set count_blank_rows = TRUE. The blank positions are then resolved on the full table and counted during the split (a leading blank is suppressed at the top of each page):

pages2 <- as_rtftables(df_g, split = "group_safe", max_rows = 6,
                       blank_rows = "between_groups", count_blank_rows = TRUE)
vapply(pages2, function(p) nrow(p$data) + length(p$blank_rows), integer(1))
#> [1] 3 3 3

Every page now fits within six rows. (blank_row_first / blank_row_end below are page furniture added after the split and are never counted, so they may still push a page past max_rows.)

Adding blank rows while paginating

as_rtftables() takes the blank-row controls alongside the split arguments; they are applied to every page:

blank_rows = "between_groups" – a blank at each group transition on a page;
blank_rows = c(0, 3) – explicit positions (0 = before the first row, k = after row k), relative to each page;
blank_row_first = TRUE / blank_row_end = TRUE – a blank at the top / bottom of every page.

Paginating yourself: `set_blank_rows()`

set_blank_rows() is the helper as_rtftables() calls on every chunk. If you do your own splitting, use it to attach the blank positions to a page-sized data.frame; rtftable(read_attributes = TRUE) (the default) then picks them up:

page <- set_blank_rows(df_g, blank_rows = "between_groups")
attr(page, "rtf_blank_rows")
#> [1] 3 6
tbl <- rtftable(page)          # read_attributes = TRUE consumes the attribute

Blank rows on a single (un-paginated) table

You do not need pagination to use them: rtftable(blank_rows = ) accepts integer positions (here -1 also means “after the last row”), or the spec constructors [blank_rows_by_change()] (blank when a column value changes) and [blank_rows_by_rule()] (blank before/after rows matching a regex), or a list combining them:

rtftable(df_g, blank_rows = blank_rows_by_change("label"))
#> ──────────
#> label    v
#> ──────────
#> Group A  1
#>   a1     2
#>   a2     3
#> Group B  4
#>   b1     5
#>   b2     6
#> Group C  7
#>   c1     8
#>   c2     9
#>
#> <rtftable> 9 rows x 2 columns
#>   Row title:  col 1
#>   Borders:    set
#>   Widths:     auto / inherited

Control the separator height with blank_row_height_twips (e.g. half the data row height); see Page & document setup. The full spec forms are documented in ?rtftable and ?set_blank_rows.

Normalising blank rows – `blank_row_normalize`

Two render-time clean-ups are applied to blank rows by default, controlled by the single blank_row_normalize argument (on rtftable(), and forwarded by as_rtftables() / rtf_tables()):

token	effect
`"detect"`	a data row whose every cell is `NA` / `""` (empty or ASCII-whitespace only) is rendered as a single full-width blank row – like an explicit separator – instead of one empty cell per column (which would draw the internal column rules across the gap).
`"collapse"`	a run of two or more consecutive blank rows (separators and/or detected empty rows) is reduced to a single blank row.

The default is c("detect", "collapse") – the combination wanted for most clinical TFLs. Because both act on the rendered table, they apply per page for a paginated table (i.e. after the split), so a stray empty row left at a page edge, or two separators meeting at a group boundary, collapse cleanly. Pass "none" (or NULL) to switch the normalisation off and render blank data rows verbatim:

Show code

df_b <- data.frame(
  A = c("x", "", "", "y"),     # two adjacent all-empty rows
  B = c("1", "", "", "2"),
  stringsAsFactors = FALSE
)
rtftable(df_b)                                   # default: one blank row

#> ────
#> A  B
#> ────
#> x  1
#>
#>
#> y  2
#>
#> <rtftable> 4 rows x 2 columns
#>   Row title:  col 1
#>   Borders:    set
#>   Widths:     auto / inherited
rtftable(df_b, blank_row_normalize = "none")     # keep both empty data rows
#> ────
#> A  B
#> ────
#> x  1
#>
#>
#> y  2
#>
#> <rtftable> 4 rows x 2 columns
#>   Row title:  col 1
#>   Borders:    set
#>   Widths:     auto / inherited

Note "detect" only fires when all columns are empty; an NBSP-indented label (the clinical sub-row layout) is not whitespace-empty, so indented rows are never mistaken for blanks.

Splitting the other way: `paginate_cols()`

Everything above cuts rows. A table that is too wide needs the other axis: paginate_cols() splits it by column and repeats the row-heading column(s) on every page.

as_rtftables(df, split = "group_safe", max_rows = 20) |>
  paginate_cols(at = c(4, 6))

at names the columns to cut before (so c(4, 6) gives blocks 1:3, 4:5, 6:ncol), symmetric with split_rows; cols = list(2:3, 4:5) states the blocks outright. Positions refer to the final printed columns – after drop_cols, stub and any col_header you supplied – the same convention set_col_header() follows.

Row splitting happens first and the column split is applied to its result, so by default the row page is the outer level: a row band sweeps every column block before the next band starts, so the reader goes across the table first and then down it. Two row pages by three column blocks come out as

page 1  row 1 / cols 1    page 4  row 2 / cols 1
page 2  row 1 / cols 2    page 5  row 2 / cols 2
page 3  row 1 / cols 3    page 6  row 2 / cols 3

Which axis the page number advances along – `order`

order says which axis the page number advances along first: "across" (the default) advances across the columns – the column block first, the row pages running inside it – and "down" advances down the rows – the row page first, its column blocks following it.

as_rtftables(df, split = "group_safe", max_rows = 20) |>
  paginate_cols(at = c(4, 6), order = "down")

"across"                         "down"
page 1  cols 1 / row 1           page 1  row 1 / cols 1
page 2  cols 1 / row 2           page 2  row 1 / cols 2
page 3  cols 2 / row 1           page 3  row 2 / cols 1
page 4  cols 2 / row 2           page 4  row 2 / cols 2

The pages themselves are identical under either setting – only their order differs – so pick the one your deliverable reads in: "down" when a reader follows a row band across the sheet, "across" when each column block is a self-contained table read on its own.

Those two are shorthands. In general order names the axes of the split, in the order they nest – outermost first:

axis	what it is
`"group"`	the pages a value-based split made (`as_rtftables(split = "by_value", group_col = )`)
`"rows"`	the row pages: `page_by`, and every other row split
`"cols"`	the column blocks `paginate_cols()` cuts

paginate_cols(pages, at = c(4, 6), order = c("group", "cols", "rows"))
paginate_cols(pages, at = c(4, 6), order = c("cols", "group", "rows"))
paginate_cols(pages, at = c(4, 6), order = "cols")        # cols first, rest as usual

"across" is c("group", "cols", "rows") and "down" is c("group", "rows", "cols"). An axis left out is appended in the default order ("group", "rows", "cols"), and an axis the table does not have never varies – so the same call works whether or not group_col / page_by were used. Each page records its own group (in rtf_paginate_meta$page_group), so the sort never has to read a page name.

One consequence: rtf_tables(auto_section = TRUE) opens a section where the page name changes, and a page is named by its group. A group’s pages are one section only while "group" comes first; put "cols" outside it and every column block starts the groups again, giving a section per block and group.

One thing to know about the names: a page’s name follows the row page it was cut from, so under "across" pages that share a name are no longer adjacent – and that does reach the sections, because rtf_tables(auto_section = TRUE) opens a section where the name changes. "down" therefore keeps a table’s column pages in one section, while "across" interleaves the names and gives a section per page. An unnamed page list (what as_rtftables() returns for a single table) opens none at all. To put pages whose names differ in one section, blank the ones that should not open a new one – combine_sections() does that bookkeeping.

The columns repeated on each page default to the table’s row_title (column 1 unless you set it); keep = overrides that, and keep = integer(0) repeats nothing. A kept column is removed from the blocks automatically, so it is never printed twice on one page.

A header whose values change per page – `set_col_header(values = )`

A header is usually one shape with a few values that change page to page – (N=120) for one period, (N=118) for the next. Write it once, with a {token} where a value belongs, and give set_col_header() a table of values keyed by the page:

Show code

hdr <- rtf_col_header(
  list(col_cell(1L, ""),
       col_cell(c( 2L,  9L), "Placebo
(N={n_pbo})
n(%)"),
       col_cell(c(10L, 17L), "TAK-003
(N={n_trt})
n(%)")),
  c("Parameter", rep(VISITS, 2))
)

vals <- data.frame(
  group = c("Period 1", "Period 2", "Period 3"),
  n_pbo = c(120, 118, 238),
  n_trt = c(115, 112, 227)
)

as_rtftables(lab, split = "by_value", group_col = "period", ...) |>
  set_col_header(hdr, values = vals) |>
  paginate_cols(cut_by = "____", keep = 1)

The key column is named after the axis it matches, the vocabulary order uses: group (default – the value a "by_value" page was cut for), rows (the page_by value) or name (the page’s unique name); several may be combined. The keys live in the page’s metadata, so they survive drop_cols and the column split.

Mistakes are errors, not silently wrong headers: a page with no row, a row no page used, or a token with no value all stop the call and name what is missing. header_map() shows what every page ended up with:

Show code

header_map(pages)
#>  page name          group    rows row cell from to text
#>  1    Period 1...1  Period 1 1    1   2    2    9  "Placebo
(N=120)
n(%)"
#>  1    Period 1...1  Period 1 1    1   3    10   17 "TAK-003
(N=115)
n(%)"

Where to cut, and what the header says – `cut_by` / `col_header`

at, and cut_by given a list of blocks, are positions. When the grouping is already in the column names – the common wide layout, one column per treatment x visit – cut_by reads it from there: give it the separator, and the part before it becomes the block key.

as_rtftables(df, split = "by_value", group_col = "period",
             stub = c("row_grp1", "label")) |>
  paginate_cols(cut_by = "____", keep = 1, col_header = "names")

col_header = "names" then builds the two-level header those names already carry – the key on top, the rest of the name below:

page 1                            page 2
|            |   Placebo     |    |            |   HOGE-001    |
| Group      | D1 | D2 | D8  |    | Group      | D1 | D2 | D8  |

cut_by also takes one key per column when the grouping is not in the names.

A header written for the whole table goes in the same argument and is sliced per page (spanning cells clipped):

paginate_cols(pages, at = c(11, 19), keep = 1, col_header = HDR)   # HDR = every label

Write the header before or at the split, never after it: a page keeps only its own columns, so a full-table header no longer fits it, and set_col_header() says so rather than printing the first labels on every page.

Column widths after the split – `fit`

column_widths_twips is absolute: a subset already carries the right widths and nothing is rescaled. Relative widths need a rule, because .compute_cellx() re-normalises whatever it is given across the page – a bare subset would stretch the kept columns to refill the sheet, making a ratio-1 column a different size on every page.

fit = TRUE (the default) fixes the twips per ratio unit on page 1 and reuses it everywhere. Page 1 – and every block with the same ratio total – fills the sheet, while a given ratio is the same width throughout. With rel = c(3, 1, 1, 1, 1, 1, 1, 1, 1) on a 13680-twip page:

blocks	unit	page widths
4 + 4	1954.3	100% / 100%
4 + 3	1954.3	100% / 85.7%
2+2+2+2	2736.0	100% on all four

Show code

tbl <- rtftable(df, col_rel_width = c(3, rep(1, 8)))
paginate_cols(tbl, at = 6)
# page 1: 5863 1954 1954 1954 1955   (13680 -- full)
# page 2: 5863 1954 1954 1954 1955   (13680 -- full)

fit = FALSE measures against the whole table instead, so a kept column has exactly the width it had before the split and a partial block yields a proportionally shorter page:

paginate_cols(tbl, at = 6, fit = FALSE)
# page 1: 3731 1244 1244 1244 1242   (8705 -- 64% of the sheet)

Order the blocks widest-first. A block totalling more ratio than block 1 scales past the sheet under fit = TRUE – three visits then five, say, puts page 2 at 133% of the width. paginate_cols() warns and names the blocks; either reorder the cut or use fit = FALSE.

Spanning header cells are clipped to each page’s columns. By default a cut may fall inside a spanning group, and that group’s label is repeated over its remaining columns on both pages; pass allow_span_break = FALSE to reject such a cut instead and be told which cell it would break.

Page names are carried through unchanged: each column page keeps the name of the row page it was cut from (see Which axis is the outer level above for what auto_section then does with them).

Worked example: a PK concentration summary

data-raw/gen_pk_conc.R builds the case that needs all of this at once – a pharmacokinetic concentration table with the visits across the columns, so it is too wide and too tall for one page:

Show code

# ABSOLUTE widths, from what the cells actually need
widths <- auto_col_widths(pk, col_header = names(pk))

as_rtftables(
    pk,
    split = "group_safe", group_by = "indent", max_rows = 21,
    col_header = list(
      list(col_cell(c(2, length(VISITS) + 1), "Plasma Concentration (ng/mL)")),
      c("Nominal Time (h)", VISITS)
    ),
    column_widths_twips = widths,
    border = "tfl"
  ) |>
  set_decimal_split(cols = VISITS) |>   # one column, two cells
  paginate_cols(at = length(VISITS) / 2 + 2)   # visits cut down the middle

Three time bands by two visit blocks gives six pages, each with the nominal time stub, and every visit column the width it has in the full table.

Size the table from its content, not from the page

Note the column_widths_twips rather than col_rel_width. Relative widths cannot produce a table that needs paginate_cols(): .compute_cellx() normalises them across the page, so whatever the ratios the full table comes out exactly as wide as the sheet, and the split would be decorative. auto_col_widths() reports what the content needs instead:

stub "Nominal Time (h)"   2021 twips   (widest cell "Min, Max")
each visit column         1804 twips   (widest cell "496.28, 1461.8")

so only six visits fit on a landscape sheet’s 13680 writable twips. The study has twelve, which makes the table 2021 + 12 x 1804 = 23669 twips – 1.73x too wide to fit – and each half 2021 + 6 x 1804 = 12845, or 94% of the page. That is what the example should look like: a table that genuinely cannot be printed in one piece, cut into blocks that each fill the sheet.

as_rtftables(auto_width = TRUE) is deliberately not used here: it clamps the total to the writable width when the natural size exceeds it, squeezing the columns back onto one page.

What the split does to the numbers

PK reports carry three significant figures, so the decimal count changes with the magnitude (1104.5, 88.012, 9.0125) – set_decimal_split() lines the points up regardless, <0.500 hangs its < to the left of the point, and BLQ or a Min, Max pair falls back to a single merged cell.

One consequence is worth knowing: the split decision is made per page. A visit column that is all BLQ within one time band carries no decimal separator there, so that page leaves the column unsplit while the other pages split it. Each page stays internally consistent, which is what the geometry needs.

Choosing an approach

You want…	Use
Everything on one page	`split = "none"` (default)
Breaks at known row numbers	`split = "rows"` + `split_rows`
As many rows as fit, groups may split (with a continuation label)	`split = "group_force"` + `max_rows`
As many whole groups as fit, never split a group	`split = "group_safe"` + `max_rows`
One page per group, named	`split = "by_value"`
One page per BY value, and an inner group kept whole	`page_by` + `split = "group_safe"` + `max_rows`
A bespoke rule	a custom `split =` function (+ `add_cont_label()`)
The split already done upstream	pass a (named) list to `as_rtftables()`
A built-in rule plus a tweak	split with a built-in, then post-process the pages
The table is too wide for the page	`paginate_cols()` (after the row split)

Whichever you choose, the result is the same shape – a list of rtftable pages – so the rest of your pipeline does not change:

Show code

doc <- rtf_document() |>
  rtf_section(page = 1, header = NULL, footer = NULL) |>
  rtf_tables(as_rtftables(df, split = "group_safe", max_rows = 6))

generate_rtfreport(doc, "demographics.rtf", overwrite = TRUE)

See ?as_rtftables for the full split = contract and ?page_split for the factory functions.

Where next

Output options — rendering the pages you just cut

The four recipes (?rtfreporter-recipes) are the same ground covered as runnable help-page examples: demographics, adverse events, PK and laboratory, each data-in to RTF-out.

1. Built-in split strategies

"none" (default) – one page

"rows" – cut at explicit positions

"group_force" – fill max_rows, repeat the group label on a cut

"group_safe" – never break a group across pages

"by_value" – one page per group, named by the group

Reusing a strategy

Shared knobs

Selecting a column

Choosing how groups are detected – group_by

Ordering rows before the split – sort_by / sort_desc

Blanking repeated values – collapse_repeats

Hiding a grouping / carrier column – drop_cols

2. A custom split function

3. Two levels at once – page_by

4. Pre-splitting the data yourself

5. Advanced: post-processing a built-in split

Blank separator rows

Blank rows and the row count

Adding blank rows while paginating

Paginating yourself: set_blank_rows()

Blank rows on a single (un-paginated) table

Normalising blank rows – blank_row_normalize

Splitting the other way: paginate_cols()

Which axis the page number advances along – order

A header whose values change per page – set_col_header(values = )

Where to cut, and what the header says – cut_by / col_header

Column widths after the split – fit

Worked example: a PK concentration summary

Size the table from its content, not from the page

What the split does to the numbers

Choosing an approach

Where next

`"none"` (default) – one page

`"rows"` – cut at explicit positions

`"group_force"` – fill `max_rows`, repeat the group label on a cut

`"group_safe"` – never break a group across pages

`"by_value"` – one page per group, named by the group

Choosing how groups are detected – `group_by`

Ordering rows before the split – `sort_by` / `sort_desc`

Blanking repeated values – `collapse_repeats`

Hiding a grouping / carrier column – `drop_cols`

3. Two levels at once – `page_by`

Paginating yourself: `set_blank_rows()`

Normalising blank rows – `blank_row_normalize`

Splitting the other way: `paginate_cols()`

Which axis the page number advances along – `order`

A header whose values change per page – `set_col_header(values = )`

Where to cut, and what the header says – `cut_by` / `col_header`

Column widths after the split – `fit`
