A tfrmt table with several stub columns: one for sections, the rest as a stub

library(rtfreporter)

When a tfrmt table places its row-group levels in columns – row_grp_plan(label_loc = element_row_grp_loc(location = "column")) – each grouping variable becomes its own stub column in the resulting gt. A very common clinical layout then wants to treat those stub columns in two different ways at once:

one stub column drives page / section splitting (one section per lab test, per cohort, …), its value dropped into the running header via rtf_tables(auto_section = TRUE);
the remaining stub columns are merged into a single indented row heading (the clinical “stub”).

This article shows both, on a lab toxicity-grade table whose three stub columns are lab test code (LBTESTCD -> sections), a fixed heading, and Toxicity Grade (the last two -> a two-level indented stub).

The data

A tidy toxicity-grade summary: for each lab test and grade, a percentage per arm. heading is a constant column – it becomes the fixed top level of the stub.

Show code

set.seed(1)
tests  <- c("ALT", "AST")
grades <- c("Grade 0", "Grade 1", "Grade 2", "Grade 3")
arms   <- c("Placebo", "Active")

dat <- expand.grid(LBTESTCD = tests, Toxgrade = grades, ARM = arms,
                   stringsAsFactors = FALSE)
dat$heading <- "Toxicity Grade"
dat$param   <- "pct"
dat$value   <- round(runif(nrow(dat), 1, 40), 1)
dat <- dat[c("LBTESTCD", "heading", "Toxgrade", "ARM", "param", "value")]
head(dat)

#>   LBTESTCD        heading Toxgrade     ARM param value
#> 1      ALT Toxicity Grade  Grade 0 Placebo   pct  11.4
#> 2      AST Toxicity Grade  Grade 0 Placebo   pct  15.5
#> 3      ALT Toxicity Grade  Grade 1 Placebo   pct  23.3
#> 4      AST Toxicity Grade  Grade 1 Placebo   pct  36.4
#> 5      ALT Toxicity Grade  Grade 2 Placebo   pct   8.9
#> 6      AST Toxicity Grade  Grade 2 Placebo   pct  36.0

Build the tfrmt table (three stub columns)

group = vars(LBTESTCD, heading) plus label = Toxgrade, rendered with location = "column", makes all three row variables stub-type columns.

Show code

library(tfrmt)

tf <- tfrmt(
  group  = vars(LBTESTCD, heading),
  label  = Toxgrade,
  column = ARM,
  param  = param,
  value  = value,
  body_plan = body_plan(
    frmt_structure(group_val = ".default", label_val = ".default", frmt("xx.x"))
  ),
  row_grp_plan = row_grp_plan(
    label_loc = element_row_grp_loc(location = "column"))
)

g <- print_to_gt(tf, dat)

The gt’s boxhead confirms the three stub columns (plus the two arm columns and one hidden helper tfrmt adds):

bx <- g[["_boxhead"]]
data.frame(var = as.character(bx$var), type = as.character(bx$type))
#>                   var    type
#> 1            LBTESTCD    stub
#> 2             heading    stub
#> 3            Toxgrade    stub
#> 4             Placebo default
#> 5              Active default
#> 6 ..tfrmt_row_grp_lbl  hidden

gt::extract_body() cannot read a table with more than one stub column, so as_rtftables() reads such a table from the gt object’s own slots. There the first stub column (LBTESTCD) is renamed to "rowname"; the other stub columns keep their names (heading, Toxgrade). That is the name you reference below (an integer index – group_col = 1 – is equally portable).

One call: split by test, merge the rest into a stub

Show code

pages <- as_rtftables(
  g, read_meta = TRUE,
  # 1) sections: split by the LBTESTCD stub column (now called "rowname"),
  #    then hide it from the printed table (it names the section instead).
  split      = "by_value",
  group_col  = "rowname",
  drop_cols  = "rowname",
  # 2) stub: fold the remaining two stub columns into one indented heading.
  stub       = stub_spec(c("heading", "Toxgrade"), label = "Toxicity Grade"),
  border     = "tfl"
)

names(pages)          # one page per lab test -> section names

#> [1] "ALT" "AST"

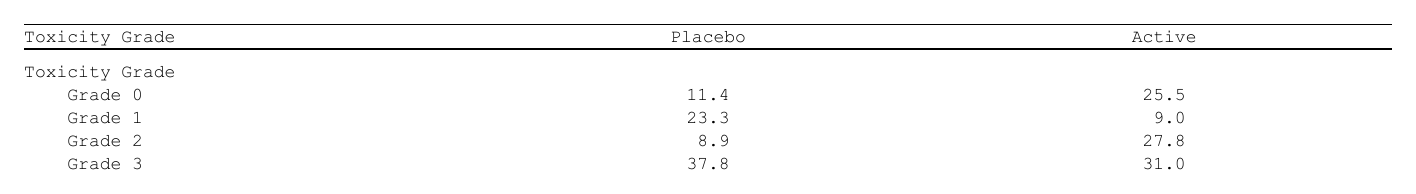

Each page carries the fixed "Toxicity Grade" heading flush-left, with the grades indented beneath it – the two stub columns merged into one:

Show code

show <- function(p) {                       # NBSP indent -> dots for display
  d <- p$data; d[[1]] <- gsub(intToUtf8(160L), ".", d[[1]], fixed = TRUE); d
}
show(pages[["ALT"]])

#>   Toxicity Grade Placebo Active
#> 1 Toxicity Grade    <NA>   <NA>
#> 2    ....Grade 0    11.4   25.5
#> 3    ....Grade 1    23.3    9.0
#> 4    ....Grade 2     8.9   27.8
#> 5    ....Grade 3    37.8   31.0

Hand the named list to rtf_tables(auto_section = TRUE) – each name becomes a section that starts on its own page with the test code in the running header:

Show code

doc <- rtf_document() |>
  rtf_section(header = my_header, footer = my_footer) |>
  rtf_tables(pages, auto_section = TRUE)

generate_rtfreport(doc, "lab-tox.rtf", overwrite = TRUE)

Why the order matters

For split = "by_value", as_rtftables() splits the body first and builds the stub per page. That order is essential here because the heading level is constant across the whole table: if the stub were built first (on the full body), that constant level would collapse into a single heading row spanning both tests, which could not then be divided into per-test sections. Splitting first gives each section its own copy of the heading. (For every other split the table stays one logical table paginated across pages, so the stub is built once, up front – see vignette("pagination").)

Consequently, under split = "by_value" the group_col names a pre-stub column (here "rowname" = LBTESTCD) and is not one of the stub columns: the outer level splits, the inner levels merge.

Where next

Pagination — how the rows are cut into pages

The four recipes (?rtfreporter-recipes) are the same ground covered as runnable help-page examples: demographics, adverse events, PK and laboratory, each data-in to RTF-out.
