Listings with a plan

Source: vignettes/articles/plan-listings.Rmd
plan-listings.Rmd

A listing is not built from an ARD. It prints records, one row of source data per subject or per event, so there are no statistics to fill in. A plan still helps. It uses the same verbs as a table for the pages, the blank rows, the style and the titles, so a report program that has tables and listings writes both the same way.

The listing machinery itself (listing_col(), listing_spec(), wrapping, widths) is described in Listings end to end. This article shows how it fits into a plan.

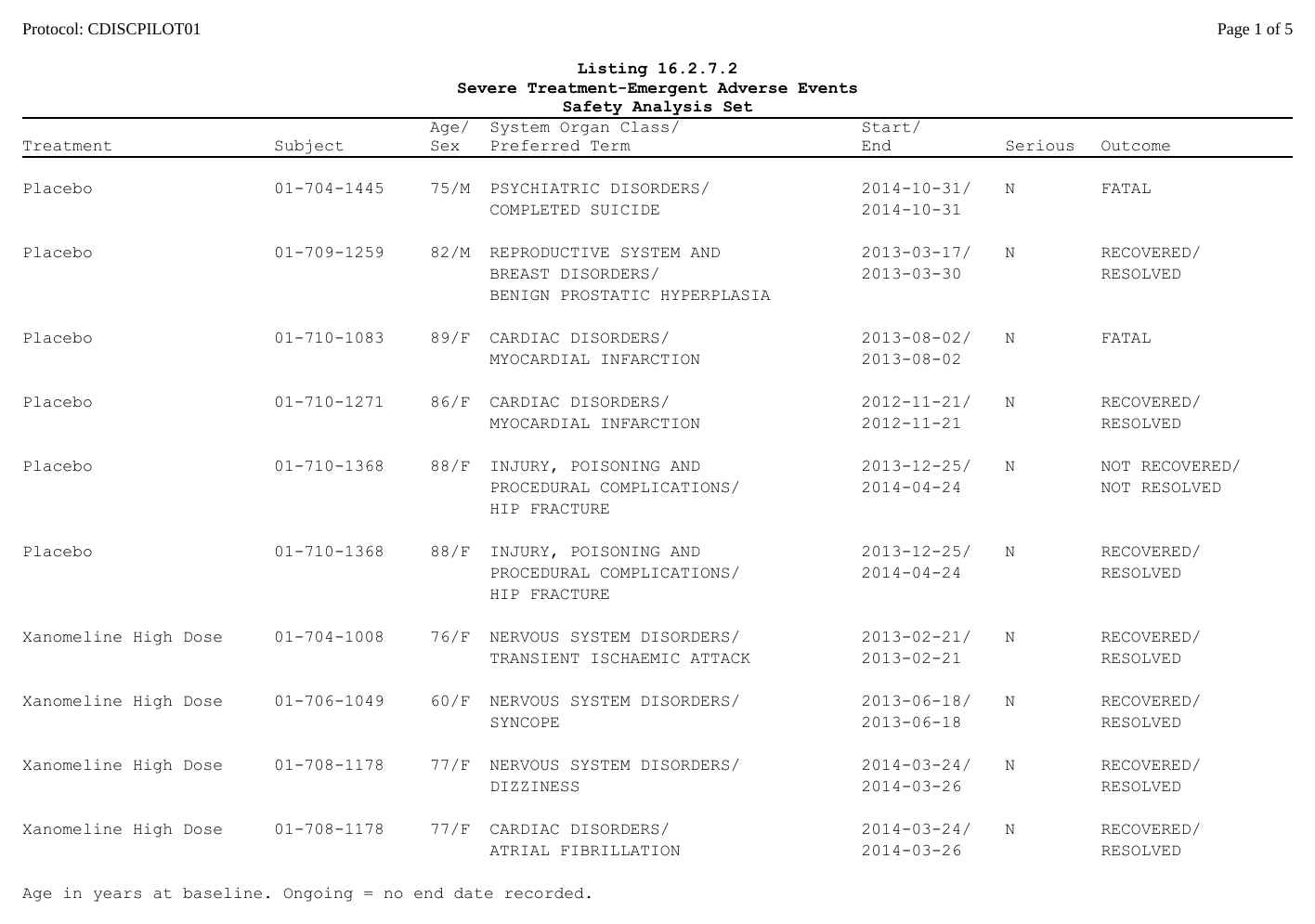

The listing this article builds:

The code is folded under Show code below each step.

The records

Severe treatment-emergent adverse events from the CDISC pilot study, one row per event:

Show code
adsl <- pharmaverseadam::adsl
adae <- pharmaverseadam::adae
sae <- adae[adae$AESEV %in% "SEVERE" & adae$TRTEMFL %in% "Y" &
               adae$SAFFL %in% "Y", ]
sae <- merge(sae, adsl[, c("USUBJID", "AGE", "SEX")], by = "USUBJID",
             suffixes = c("", ".adsl"))
sae <- sae[order(sae$TRT01A, sae$USUBJID, sae$ASTDT), ]
sae$ASTDT <- format(sae$ASTDT, "%Y-%m-%d")
sae$AENDT <- ifelse(is.na(sae$AENDT), "Ongoing", format(sae$AENDT, "%Y-%m-%d"))
nrow(sae)
#> [1] 41

The plan

table_plan() is handed the records as they are. plan_listing() says it is a listing: its arguments are the printed columns, each a listing_col(), plus listing_spec()’s own settings. A column can combine several source variables, joined by / and wrapped to its width:

Show code
p_body <- table_plan(sae) |>
  plan_listing(
    listing_col("TRT01A", width = 20, label = "Treatment", collapse_repeats = TRUE),
    listing_col("USUBJID", width = 12, label = "Subject", collapse_repeats = TRUE),
    listing_col(c("AGE", "SEX"), label = "Age/\nSex", layout = "flow"),
    listing_col(c("AEBODSYS", "AEDECOD"), width = 30,
                label = "System Organ Class/\nPreferred Term"),
    listing_col(c("ASTDT", "AENDT"), width = 11, label = "Start/\nEnd"),
    listing_col("AESER", label = "Serious"),
    listing_col("AEOUT", width = 16, label = "Outcome")) |>
  plan_blanks(where = "records") |>
  plan_paginate_rows(max_rows = 36) |>
  plan_style(border = "tfl")

p <- p_body |>
  plan_titles("Listing 16.2.7.2", "Severe Treatment-Emergent Adverse Events",
              "Safety Analysis Set") |>
  plan_footnotes("Age in years at baseline. Ongoing = no end date recorded.")
  • collapse_repeats = TRUE marks a key column. Its value prints on the first line of a record and not on the lines a wrapped cell adds below it. If a record continues onto the next page, the value prints again at the top of that page.
  • plan_blanks(where = "records") puts a blank row between records. first = TRUE would add one at the top of every page too.
  • plan_paginate_rows(max_rows = ) counts physical rows, including the extra lines of wrapped cells, and never splits a record across pages.
  • plan_titles() and plan_footnotes() put the same block on every page.
Show code
doc <- rtf_document(page = rtf_page(orientation = "landscape")) |>
  rtf_section(header = rtf_header(list(
    c(l = "Protocol: CDISCPILOT01", r = "Page {PAGE} of {TOTAL_PAGES}")))) |>
  rtf_tables(p)
generate_rtfreport(doc, "l_sae.rtf", overwrite = TRUE)
length(plan_apply(p))    # pages
#> [1] 5

The same listing without a plan

The plan resolves to one as_rtftables() call. Written by hand, it is:

Show code
spec <- listing_spec(list(
  listing_col("TRT01A", width = 20, label = "Treatment", collapse_repeats = TRUE),
  listing_col("USUBJID", width = 12, label = "Subject", collapse_repeats = TRUE),
  listing_col(c("AGE", "SEX"), label = "Age/\nSex", layout = "flow"),
  listing_col(c("AEBODSYS", "AEDECOD"), width = 30,
              label = "System Organ Class/\nPreferred Term"),
  listing_col(c("ASTDT", "AENDT"), width = 11, label = "Start/\nEnd"),
  listing_col("AESER", label = "Serious"),
  listing_col("AEOUT", width = 16, label = "Outcome")),
  blank_row = TRUE)
pages <- as_rtftables(sae, listing = spec, max_rows = 36, border = "tfl")

all.equal(pages, plan_apply(p_body))
#> [1] TRUE

The two give the same pages. The comparison uses p_body, the plan before its titles and footnotes, because the hand-written call would pass those to rtf_tables() instead. Write it whichever way suits the program. The plan has two advantages:

  • The same verbs as the tables. A report’s page length, borders and titles are written the same way for a listing and for a table.
  • A plan can be kept as a spec. tflspec saves a plan’s declarations to a workbook and builds the plan again from it, so the listing’s layout lives next to the tables’ in one study spec.

Checking the widths first

The widths above were picked by hand. fit_listing_widths() works them out from the paper, the font and the longest values. Pass it the records and the same columns without widths, and paste the widths it suggests into listing_col(width = ). See Listings end to end.
