Figures

Source: vignettes/articles/figures.Rmd
figures.Rmd

A figure is a design, kept as a YAML file: one ordered list of steps from ADaM to what is drawn (the plot’s data, and the objects made from it: a Kaplan-Meier fit, summary statistics …), the figure-wide settings, and the layers drawn, in order. tfl_fig_design_code() writes the ggplot2 script it stands for. The script depends on dplyr and ggplot2 (and ggsurvfit / patchwork where a layer needs them), not on tflspec: it is the program a study keeps, to read and finish by hand. It is written in the style of a study’s other programs: it has two sections, # ---- data ---- (one |> pipe an object) and # ---- plot ---- (the palette, then one + chain into the figure).

library(tflspec)
adam <- tfl_example_adam()   # simulated ADaM: ADSL, ADTTE, ADRS, ADLB ...

Start from a template

tfl_fig_templates() lists the templates, each with its clinical category and the data it reads:

tp <- tfl_fig_templates()
knitr::kable(head(tp[, c("template", "category", "data", "label")], 12))
template category data label
km_risk_table Efficacy: time to event ADTTE KM curves + number at risk
km_simple Efficacy: time to event ADTTE KM curves
km_ci Efficacy: time to event ADTTE KM curves + confidence bands + number at risk
km_single_arm Efficacy: time to event ADTTE One KM curve + number at risk
waterfall_response Efficacy: tumour response ADTR + ADRS Waterfall, bars by best response
waterfall_plain Efficacy: tumour response ADTR Waterfall
swimmer_bar Efficacy: tumour response ADSL Swimmer: bars + ongoing arrows
swimmer_response Efficacy: tumour response ADSL + ADRS Swimmer: bars by best response + ongoing arrows
swimmer_assessment Efficacy: tumour response ADSL + ADRS Swimmer: bars by best response + response at each assessment
swimmer_full Efficacy: tumour response ADSL + ADRS Swimmer: bars, assessments, event markers, ongoing arrows
individual_spider Efficacy: tumour response ADTR + ADRS Spider: % change in tumour size per subject, by best response
bar_rate_ci Efficacy: subgroups and rates ADRS + ADSL Response rate by group with 95% CI
design <- tfl_fig_template("km_risk_table", param = "OS", group = "TRT01P")
tfl_check_fig_design(design, adam)   # 0 rows: the data has what it reads
#> [1] part    field   problem
#> <0 rows> (or 0-length row.names)

The design as YAML

tfl_write_fig_design() writes one .yml a figure; tfl_read_fig_design() reads it back. It reads top to bottom as the figure is made:

yml <- tfl_write_fig_design(design, file.path(tempdir(), "F-14-2-1.yml"))
cat(readLines(yml), sep = "\n")
template: km_risk_table
data:
- step: read
  dataset: ADTTE
- step: param
  value: OS
- step: flag
  variable: FASFL
- step: time_unit
  variable: AVAL
  unit: months
- step: survfit
  name: fit
  time: AVAL
  censor: CNSR
  by: TRT01P
plot:
  x_label: Time (Months)
  y_label: Survival Probability
  colour_by: TRT01P
  palette: treatment
  legend: inside
  x_min: 0.0
  y_min: 0.0
  y_max: 1.0
  y_by: 0.2
  dpi: 300.0
  base_size: 10.0
  theme: boxed
layers:
- layer: km_curve
  linewidth: 0.3
- layer: censor_mark
  shape: x
  size: 3.0
  stroke: 0.6
- layer: hline
  yintercept: 0.5
  linetype: twodash
  colour: grey50
  linewidth: 0.3
- layer: risk_table
  title: Number of Patients at Risk
  size: 3.0
  height: 0.167
  • data steps: read, join, param, flag, filter, derive, time_unit, levels, rank; the steps that make an object of their own (name): survfit, summary, summary_by, rate, count, subset, ard_stats; and code. A step after one of these changes that object, in its pipe (a design written before 0.0.24.9074, with a stats: list, reads as the one list);
  • layers: layers of the catalog (tfl_fig_parts() lists every piece and field), any geom by name, a call to any function, layer_code;
  • raw R inside a value is the !r tag (tfl_fig_r() in R).

The script

code <- tfl_fig_design_code(design, "F-14-2-1")
cat(code, sep = "\n")
# F-14-2-1: km_risk_table
# Generated by tflspec 0.0.24.9174 from the figure's design.

library(dplyr)
library(ggplot2)
library(ggsurvfit)
library(patchwork)

# the days in a week, a month, a year (the study's setup may set them)
if (!exists("days_per_month")) days_per_month <- 30.4375

# ---- data ------------------------------------------------------------------
# Input data frames: adtte

adtte_os <- adtte |>
  filter(PARAMCD == "OS", FASFL == "Y") |>
  # days -> months
  mutate(AVAL = AVAL / days_per_month)

fit <- survfit2(Surv(AVAL, CNSR == 0) ~ TRT01P, data = adtte_os)

x_breaks <- pretty(c(0, max(fit$time)))

# the number at risk at the x axis's breaks, from the fit
sr <- summary(fit, times = x_breaks, extend = TRUE)
risk <- data.frame(
  time   = sr$time,
  strata = sub("^[^=]*=", "", as.character(sr$strata)),
  n_risk = sr$n.risk
) |>
  mutate(strata = factor(strata, levels = rev(levels(factor(adtte_os$TRT01P)))))

# ---- plot ------------------------------------------------------------------
# the treatment palette, a colour for each TRT01P
lv <- levels(factor(adtte_os$TRT01P))
pal <- setNames(rep_len(c("#0072B2", "#D55E00", "#009E73", "#CC79A7", "#E69F00", "#56B4E9"), length(lv)), lv)

fig <- ggsurvfit(fit, linewidth = 0.3) +
  add_censor_mark(shape = 4, size = 3, stroke = 0.6) +
  geom_hline(yintercept = 0.5, linetype = "twodash", colour = "grey50",
             linewidth = 0.3) +
  scale_colour_manual(values = pal, breaks = names(pal)) +
  scale_x_continuous(
    breaks = x_breaks,
    expand = expansion(mult = c(0.02, 0.02))
  ) +
  scale_y_continuous(breaks = seq(0, 1, by = 0.2)) +
  coord_cartesian(xlim = range(x_breaks), ylim = c(0, 1)) +
  labs(x = "Time (Months)", y = "Survival Probability") +
  theme_minimal(base_size = 10) +
  theme(
    axis.title        = element_text(size = 10),
    axis.text         = element_text(size = 8),
    legend.text       = element_text(size = 9),
    legend.key.size   = unit(0.7, "lines"),
    panel.border      = element_rect(colour = "black", fill = NA, linewidth = 0.5),
    panel.grid        = element_blank(),
    axis.ticks        = element_line(linewidth = 0.4),
    axis.ticks.length = unit(2, "mm")
  ) +
  theme(
    legend.position        = "inside",
    legend.position.inside = c(0.98, 0.98),
    legend.justification   = c(1, 1),
    legend.background      = element_rect(colour = "black", fill = "white", linewidth = 0.3),
    legend.title           = element_blank()
  )

p_risk <- ggplot(risk, aes(x = time, y = strata, label = n_risk, colour = strata)) +
  geom_text(size = 3) +
  scale_colour_manual(values = pal, guide = "none") +
  scale_x_continuous(
    breaks = x_breaks,
    expand = expansion(mult = c(0.02, 0.02))
  ) +
  coord_cartesian(xlim = range(x_breaks), clip = "off") +
  labs(title = "Number of Patients at Risk", x = NULL, y = NULL) +
  theme_void(base_size = 10) +
  theme(
    plot.title          = element_text(hjust = 0, size = rel(0.9)),
    plot.title.position = "plot",
    axis.text.y         = element_text(hjust = 1, margin = margin(r = 5))
  )

fig <- fig / p_risk + plot_layout(heights = c(0.833, 0.167))

fig

# ---- saving the figure -----------------------------------------------------
fig_path   <- file.path("output", "F-14-2-1.png")
fig_width  <- 7.5
fig_height <- 4.5
fig_dpi    <- 300
fig_units  <- "in"

dir.create(dirname(fig_path), showWarnings = FALSE, recursive = TRUE)
ggsave(
  filename = fig_path,
  plot     = fig,
  width    = fig_width,
  height   = fig_height,
  dpi      = fig_dpi,
  units    = fig_units
)

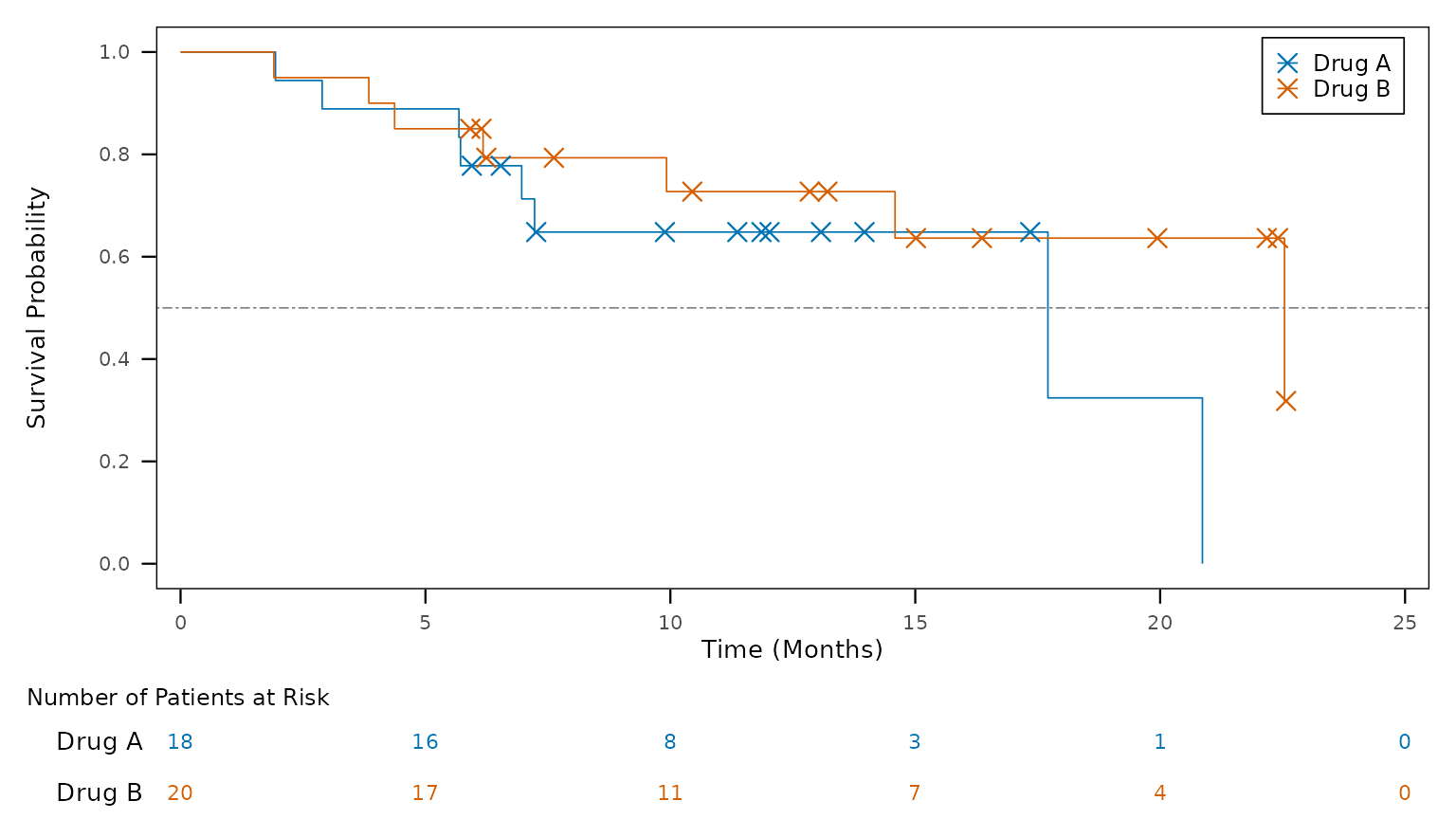

Run it where the datasets are (here, objects named as the datasets in lower case), and it draws and saves the figure:

env <- list2env(setNames(adam, tolower(names(adam))))
old <- setwd(tempdir())
eval(parse(text = code), envir = env)
setwd(old)
env$fig

In a study’s programs

Three arguments fit the script into a study’s other programs:

  • setup = TRUE takes the palette from the study’s figure setup (tfl_colours(), see One look for the study below) instead of writing it in the script;
  • save = FALSE leaves out the PNG: a report program places the figure itself;
  • name is what the figure is called ("plot", for a report program that hands it to rtfreporter).
code <- tfl_fig_design_code(design, "F-14-2-1", setup = TRUE, save = FALSE,
                            name = "plot")
cat(code[grep("tfl_colours|^plot <-|ggsave", code)], sep = "\n")   # no ggsave()
pal <- tfl_colours("treatment", levels(factor(adtte_os$TRT01P)))
plot <- ggsurvfit(fit, linewidth = 0.3) +
plot <- plot / p_risk + plot_layout(heights = c(0.833, 0.167))

When the design cannot say it

What a template’s fields cannot express is written in the design, not patched into the script afterwards:

  • a code step: R that reworks df or makes an object of its own;
  • a layer_code layer: R added to the plot p;
  • plot.add: calls written after the figure’s settings (theme(), scale_*(), facet_*());
  • !r values: labels: !r scales::label_percent().

Written in the style of the script, with |>:

arms <- "df <- df |> mutate(TRT01P = factor(TRT01P, sort(unique(TRT01P))))"
cutoff <- paste('p <- p + annotate("text", x = 1, y = 0.05,',
                'label = "Data cut-off: 01JUN2026", hjust = 0, size = 3)')
design$data <- append(design$data, list(list(step = "code", code = arms)),
                      after = 3)   # after the read, param and flag steps
design$layers <- c(design$layers,
                   list(list(layer = "layer_code", code = cutoff)))
code <- tfl_fig_design_code(design, "F-14-2-1")
cat(code[grep("your code|TRT01P = factor|Data cut-off", code)], sep = "\n")
adtte_os <- adtte_os |> mutate(TRT01P = factor(TRT01P, sort(unique(TRT01P))))
p <- p + annotate("text", x = 1, y = 0.05, label = "Data cut-off: 01JUN2026", hjust = 0, size = 3)

One look for the study

tfl_fig_style() holds every look-and-feel value of a study’s figures (fonts, palettes, line widths, the legend); a study sets its own with options(tflspec.fig_style = tfl_read_fig_style(path)), starting from tfl_fig_style_template(). tfl_fig_setup_code() writes the same values as a setup script the figure programs source.

names(tfl_fig_style())
#> [1] "settings" "colors"   "markers"

A time on a figure’s axis is divided by a named constant, not by a number in each program: mutate(AVAL = AVAL / days_per_month), with days_per_week, days_per_month and days_per_year. The study’s setup sets them; tfl_fig_setup_code() defines each one that is not defined yet, with the values of tfl_time_unit_days().

tfl_time_unit_days()
#>  days_per_week days_per_month  days_per_year
#>         7.0000        30.4375       365.2500

A forest plot from the figure’s own ARD

The forest_hr template draws hazard ratios that are statistics of an ARD – one Cox model of all subjects and one within each subgroup, made by cards / cardx – rather than fitting the models in the figure program. tfl_fig_template("forest_hr", subgroups = , comparison = ) gives the design, and attr(design, "analyses") the analyses the ARD needs (tfl_fig_forest_analyses()), ready for the ARD spec. Its text columns (N, the estimate and its interval) are a panel at the right of the plot.

Composed figures and ggplot2 versions

A design may hold several plots (plots:) and a patchwork layout (compose: {layout: km | box}). ggplot2_version: "3.5" or "4.0" writes the script for that version (tfl_fig_compat() lists the differences), and tfl_fig_calls() lists the extension functions a call layer may name.

The older figure spec

The sheet-based figure spec (tfl_fig_spec(), tfl_fig_code()) and the quick figures (tfl_fig_km(), tfl_fig_waterfall(), …, tfl_fig_catalog()) remain while the development team decides between the two (Discussion #63); new work should use the design.
